Product Information

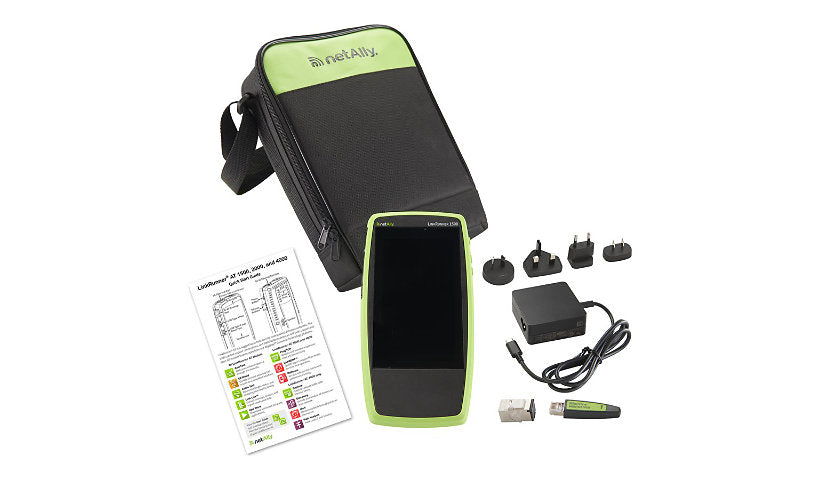

The NetAlly LinkRunner AT 1500 suits frontline technicians who need fast, thorough validation of copper links and cables. It tests connectivity, wiremap, PoE and UPoE with TruePower load testing and checks 802.1x, CDP, LLDP, DHCP and VLAN settings. It has a 5 inch 720 x 1280 color touchscreen, 8 GB flash, RJ-45, USB-C and USB-A ports and a lithium ion battery for up to 9 hours. It comes with a power supply with regional plugs, WireView cable ID 1, a getting started guide and a small soft case.
Key Features
- Copper link tester
- TruePower PoE, UPoE
- 802.1x, CDP, LLDP, VLAN
- 5 inch touchscreen
- Up to 9 hour battery
- WireView ID 1 included
Product Information
Tests, Tools and Measurements: Network connectivity, PoE, UPoE, Wiremap
Media: Copper
Brand: NetAlly
Manufacturer: NetAlly
Product Line: NetAlly LinkRunner
Model: AT 1500
Product Type: Network tester
Packaged Quantity: 1
Network and Communication
Features #2: Touchscreen
Features: 802.1x authentication, Build-in 8GB flash, Cisco Discovery Protocol (CDP), Link Layer Discovery Protocol (LLDP), Network configuration with DHCP, Status LED, TruePower PoE, USB connectivity, VLAN support
Features: Touchscreen
Connectivity
Connectors: 24 pin USB type C, RJ-45, USB type A
Power
Battery Chemistry: Lithium ion
Battery Voltage: 3.63 volt
Output Voltage: 15 V
Battery Run Time (Up To): 9 Hours
Input Voltage: 100-240 V
Technical Information
Color Support: Color
Display Diagonal Size: 5 inch
Display Diagonal Size (metric): 12.7 centimetre
Display Resolution: 720 x 1280 pixels
Display Screen: LCD
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 90% RH (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Dimensions and Weight
Height: 7.7 inch
Width: 4 inch
Depth: 1.7 inch
Weight: 16.93 ounce
Included Items
Included Accessories: AC power adapter, Small soft case, Wireview cable ID #1
Certifications and Listing
Compliant Standards: CISPR 11 Group 1 Class A, IEC 61010-1:2010, IEC 61326-1, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
