Product Information

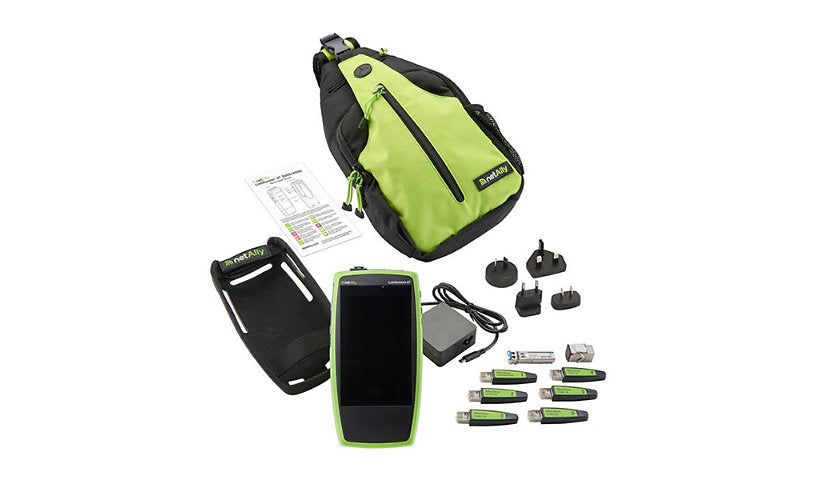

The NetAlly LRAT-4000-KIT bundles the LinkRunner AT 4000 tester with an 850 nm multimode 1 Gbps SFP, WireView cable IDs 1 to 6, an RJ-45 inline coupler, a holster, a shoulder sling bag, an AC adapter and 1 year of AllyCare support. The tester checks copper and fiber links for connectivity, ping, wiremap and UPoE and handles IEEE 802.3ab, af, at and bt. It has a 5 inch 720 x 1280 color touchscreen, 8 GB flash, RJ-45, SFP, USB-C and USB-A ports and up to 9 hours of lithium ion battery life.
Key Features
- LinkRunner AT 4000 kit
- 1G multimode SFP included
- WireView IDs 1 to 6
- Copper and fiber links
- Shoulder sling bag
- 1 year AllyCare support
Product Information
Tests, Tools and Measurements: Network connectivity, Ping, UPoE, Wiremap
Media: Copper, Fiber
Brand: NetAlly
Manufacturer: NetAlly
Product Line: NetAlly LinkRunner
Model: AT 4000
Product Type: Network tester
Packaged Quantity: 1
Network and Communication
Features #2: Touchscreen
Features: Build-in 8GB flash, Status LED, USB connectivity
Features: Touchscreen
Bundled Services: 1 year AllyCare support
Connectivity
Connectors: 24 pin USB type C, RJ-45, SFP, USB type A
Power
Battery Chemistry: Lithium ion
Battery Voltage: 3.63 volt
Output Voltage: 15 V
Battery Run Time (Up To): 9 Hours
Input Voltage: 100-240 V
Technical Information
Color Support: Color
Display Diagonal Size: 5 inch
Display Diagonal Size (metric): 12.7 centimetre
Display Resolution: 720 x 1280 pixels
Display Screen: LCD
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 90% RH (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Dimensions and Weight
Height: 7.7 inch
Width: 4 inch
Depth: 1.7 inch
Weight: 16.93 ounce
Included Items
Included Accessories: 850nm multimode 1 Gbps SFP, AC power adapter, Holster, RJ-45 inline coupler, Shoulder sling bag, Wireview cables ID #1-6
Cables: 1 x RJ-45 coupler
Certifications and Listing
Compliant Standards: CISPR 11 Group 1 Class A, IEC 61010-1:2010, IEC 61326-1, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Not sure this tester or tool fits your job? Send us the cable types, connectors and network speeds you work with, and the DatorPro team will help you pick the right model before you order.
