Product Information

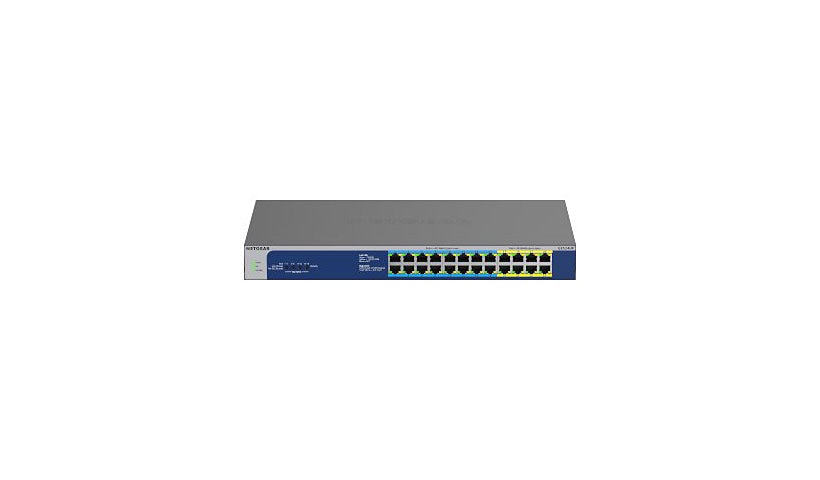

NETGEAR's GS524UP is an unmanaged switch with 24 Gigabit ports, sixteen of them PoE++ at up to 60 W and eight PoE+, sharing a 480 W budget. It has a metal housing, QoS support and fits on a desk or in a rack.
Key Features
- 24 x Gigabit RJ-45 ports
- 16 x PoE++ (60 W) + 8 x PoE+
- 480 W PoE budget
- 48 Gbps non-blocking throughput
- Unmanaged, metal housing
- Desktop or rack mount
Product Information
Brand: NETGEAR
Manufacturer: NETGEAR
Product Line: NETGEAR
Model: GS524UP
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Blue, Gray
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Forwarding rate (1000Mbps): 1448000 packets per second, Latency (64-byte packets): 12 µs, Non-blocking switching throughput: 48 Gbps
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9216 bytes
Features: 192KB packet buffer, 2 fans, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Class of Service (CoS), DiffServ Code Point (DSCP) support, Metal housing, Weighted Round Robin (WRR)
Connectivity
Ports: 24
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 16
Ports Type (2nd): 10/100/1000 (PoE++)
Interface Provided: 24 x 10/100/1000 Base-T RJ-45 16 ports (PoE++)/8 ports (PoE+) - 60 W
Power Over Ethernet (PoE): PoE++
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 578.8 watt
PoE Budget: 480 watt
Power Supplies Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 95% (non-condensing)
MTBF: 809853.3 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Status Indicators: Fan, Link/activity, PoE, Power
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 15.4 inch
Depth: 8.7 inch
Weight: 6.83 lbs
Included Items
Included Accessories: Rubber feet
Certifications and Listing
Compliant Standards: AS/NZS 62368.1, BSMI CNS 14336-1, EN 62368-1 Second Edition, EN60950-1 (2nd Edition), IEC 60950-1, IEC 62368-1, Plug and Play, UL 62368-1
Compliant Standards: IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
ENERGY STAR Certified: No
Warranty
Limited Warranty: Lifetime Limited
Service & Support Details: Limited warranty - lifetime
