Product Information

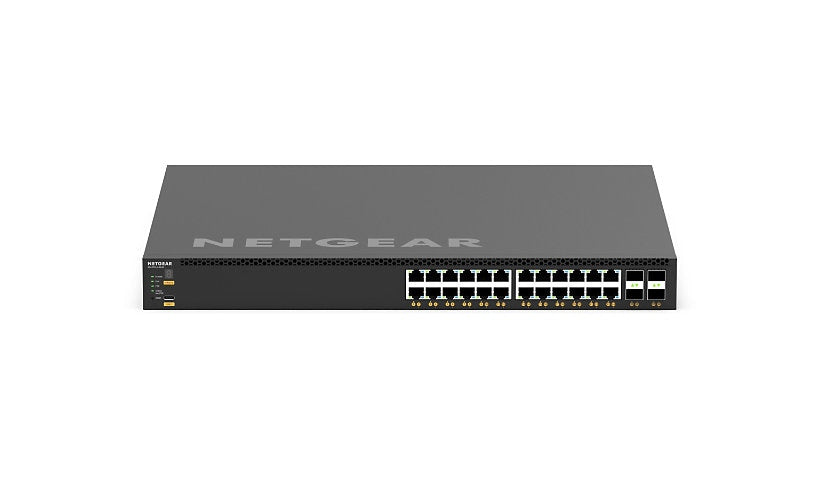

The NETGEAR M4350-24X4V is a high-performance managed switch built for modern AV and IT networks, with front-to-back airflow for stable operation under heavy load. It provides 24 multi-gig (1/2.5/5/10GBase-T) PoE+ ports with a 576 W PoE budget and 4 SFP ports, a 680 Gbps switching fabric and 505.92 Mpps throughput. Audio Video Bridging (AVB), IGMP, QoS, VLAN and sFlow support efficient, secure traffic management. It is stackable, supports jumbo frames up to 12,000 bytes and mounts in a rack.
Key Features
- 28-port managed switch
- 24x 1/2.5/5/10GBase-T PoE+ (576 W)
- 4x SFP uplinks
- AVB, IGMP, QoS, VLAN
- Rack-mountable, stackable
Product Information
Brand: NETGEAR
Manufacturer: Kramer Electronic
Product Line: NETGEAR
Model: M4350-24X4V
Manufacturer Part Number: XSM4328CV-100NES
Product Type: Switch
Technical Information
Features: Audio Video Bridging (AVB), IGMP support, IGMPv1/v2/v3 support, IPv4 support, IPv6 support, PoE timer, Quality of Service (QoS), sFlow, VLAN support
Dimensions and Weight
Width: 17.3 inch
Height: 1.7 inch
Depth: 15.7 inch
Rack Units: 1
Weight: 14.51 lbs
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Clock Speed: 1.8 GHZ
Processor Number: A57
Processor Type: ARM8
Processors Installed: 1
Flash Memory Installed: 256 megabyte
Memory Technology: DDR4 SDRAM
RAM Installed: 2 GB
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 12000 bytes
MAC Address Table Size: 16K entries
Manageable: Yes
PoE Budget: 576 watt
Ports: 28
Power Over Ethernet (PoE): PoE+
Remote Management: DHCP, IPv4, IPv6
Stackable: Stackable
Subcategory: Network hubs and switches
Switching Type: 10 Gigabit Ethernet
Expansion Slots: 1 (total) / 0 (free) x System Power Supply Unit (PSU)
Interface Provided: 1 x management (Gigabit LAN) RJ-45, 1 x serial (RS-232) RJ-45 console, 1 x USB Type C console, 2 x USB 3.0 Type A storage, 24 x 10/100/1000 Base-T RJ-45 24 ports (PoE+), 4 x 25GBase-X SFP
Port Quantity: 24
Port Type: 1/2.5/5/10GBase-T
Ports Type (2nd): SFP (mini-GBIC)
Airflow Direction: Front to back airflow
Capacity: Packet buffer size: 32 MB
Device Type: Internal power supply
Performance: Latency: < 1.06 µs, Switch fabric speed: 680 Gbps, Throughput (64-byte packet size): 505.92 Mpps
Ports (2nd) Quantity: 4
Rack Mounting Kit: Included
Cables: 1 x USB-C cable
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: AS/NZS, BSMI, EAC, EN 55032:2015, EN 55035, EN 61000-3-2, EN 61000-3-3, EN55024, FCC 47 CFR Part 15 B Class A, ICES-003 issue 7 Class A, VCCI
