Product Information

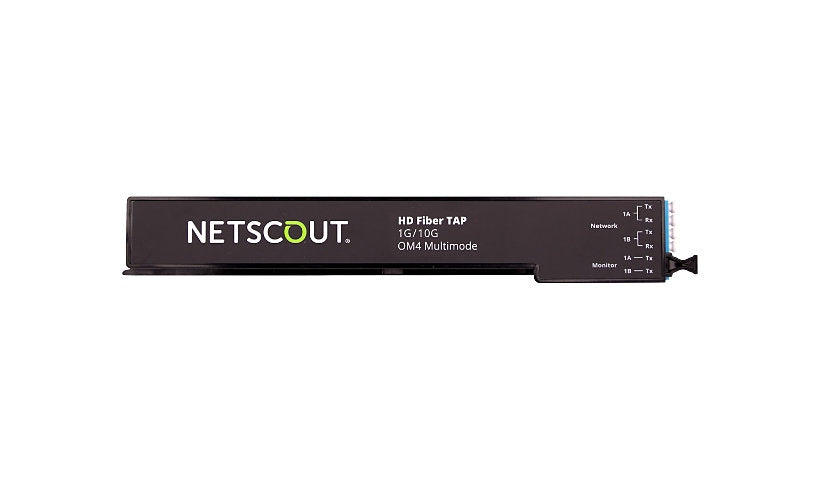

The NetScout HD Fiber TAP 340-1084 is a plug-in fiber tap module for one link. It copies traffic from a multimode fiber link to a monitoring port at a 50:50 split ratio, with LC duplex connectors for the two network sides and the monitor side. It works with 1, 10, 25, 40 and 100 GbE links.
Key Features
- Fiber tap module
- 50:50 split ratio
- Multimode LC duplex
- 1 to 100 GbE links
- 1 link per module
- Plug-in module
Product Information
Brand: NetScout
Manufacturer: NETSCOUT
Product Line: NetScout
Model: HD Fiber TAP
Product Type: Tap splitter
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Features: 50:50 split ratio
Connectivity
Interface Provided: 1 x 100Gb Ethernet (monitoring) - LC multi-mode female x 2, 2 x 100Gb Ethernet - LC multi-mode female x 2
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Module
Dimensions and Weight
Height: 1.6 inch
Width: 0.7 inch
Depth: 10 inch
Weight: 2.82 ounce
Certifications and Listing
Compliant Standards: OM4
Warranty
Service Activation: No
