Product Information

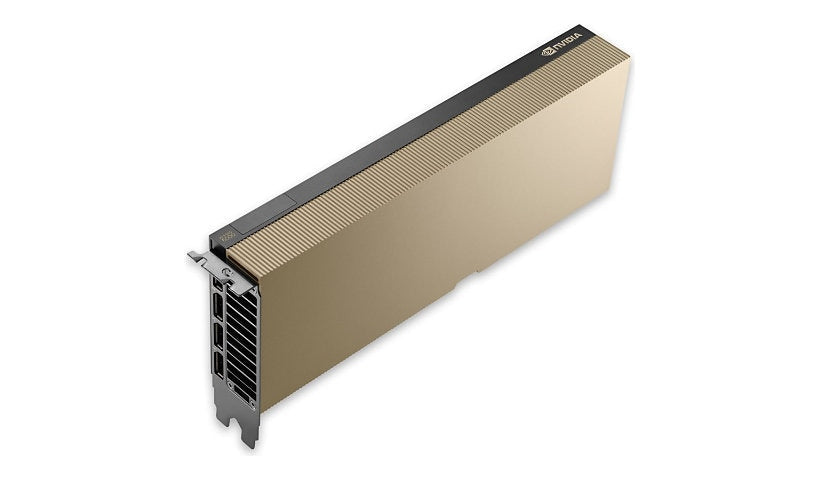

This NVIDIA RTX PRO 6000 card, offered through Lenovo, carries 96 GB of GDDR7 ECC memory on a 512-bit bus and 24064 CUDA cores on the Blackwell architecture. It connects via PCI Express 5.0 x16, supports up to four displays and has a fanless design. It is listed for Lenovo P/N 4X97A84510 and is a graphics card, not a CPU.
Key Features
- 96 GB GDDR7 with ECC, 512-bit, 1597 GB/s
- 24064 CUDA cores, 5th gen Tensor and 4th gen RT cores
- 4 x DisplayPort, up to 7680 x 4320 at 100 Hz on two displays
- PCI Express 5.0 x16, fanless design
- Multi-Instance GPU, DLSS 4, NVENC and NVDEC
- 600 W operational power
Product Information
Brand: NVIDIA
Manufacturer: Lenovo
Product Line: NVIDIA
Product Type: Graphics card
Packaged Quantity: 1
Color Category: Beige
Connectivity
Output Ports (compact list): 4 x DisplayPort
Interface Type: PCI Express 5.0 x16
Interfaces: 4 x DisplayPort
Power
Power Consumption Operational: 600 watt
Memory and Processor
Installed Size: 96 GB
Graphics Controller Model: NVIDIA RTX PRO 6000
Graphics Processor Manufacturer: NVIDIA
CUDA Cores Quantity: 24064
Bus Width: 512-bit
Band Width: 1597 GBps
API Supported: DirectX 12, OpenGL 4.6, Shader Model 6.6, Vulkan 1.3
Video Adapter Features: 4:2:2 support, 4th gen Ray Tracing Cores, 5th gen Tensor Cores, Error Correcting Codes (ECC) Memory, Multi-Instance GPU (MIG) technology, NVDEC support, NVENC support, NVIDIA Blackwell GPU architecture, Nvidia CUDA technology, NVIDIA DLSS 4
Memory Technology: GDDR7 SDRAM
Technical Information
Maximum Monitors Supported: 4
Maximum External Resolution: 7680 x 4320
Maximum Resolution Details: DisplayPort: 7680 x 4320 at 100 Hz (dual displays) / 3840 x 2160 at 165 Hz (four displays)
Supported Video Signal: DisplayPort
Fanless: Yes
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Dimensions and Weight
Height: 4.4 inch
Depth: 10.5 inch
Certifications and Listing
Compliant Standards: BSMI, cUL, DisplayPort 2.1b, FCC, ICES, KCC, RCM, UL, VCCI
ENERGY STAR Certified: No
