Product Information

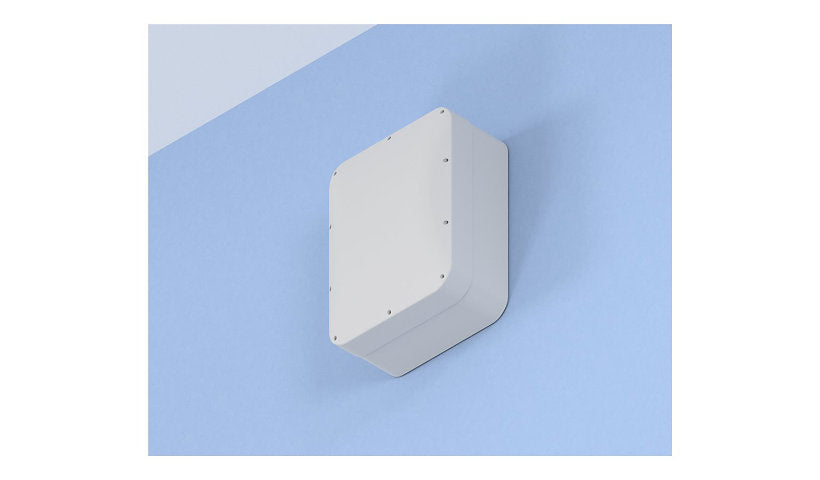

The Oberon Skybar 1022-C is a compact, rugged NEMA 4X polycarbonate enclosure for an access point, a mounting accessory rather than an antenna. It has a translucent, paintable screw-on cover with recessed tamper resistant screws and works indoors or outdoors on a wall, pole or under a seat. The kit includes a mounting plate, T-bar bracket, four wall brackets, captive Phillips and Torx screws, flat and pan head screws, plastic screws and washers. Gray and clear; the photo color may differ.
Key Features
- Enclosure, not an antenna
- NEMA 4X, compact
- Translucent screw-on cover
- Tamper resistant screws
- Wall, pole or under seat
- Full mounting kit included
Product Information
Image Color Disclaimer: The displayed product image may be a different color
Brand: Oberon
Manufacturer: cpi
Product Line: Oberon Skybar
Model: 1022-C
Product Type: Wireless access point enclosure
Category of Accessory: Mounting hardware
Packaged Quantity: 1
Color: Clear, Gray
Color Category: Gray, Transparent
Network and Communication
Features: Compact, Paintable, Recessed cover screws, Rugged, Screw-on cover, Tamper-resistant, Translucent cover
Physical Characteristics
Indoor/Outdoor: Indoor, Outdoor
Mounting Kit: Included
Placement: Pole mountable, Under-the-seat mountable, Wall mountable
Materials: PC plastic
Dimensions and Weight
Height: 11.4 inch
Width: 6.4 inch
Depth: 3 inch
Included Items
Package Content: 10 x M4 x 20 mm captive Phillips screw, 10 x M4 x 20 mm captive Torx screw, 4 wall mounting brackets, 4 x #6 x 1/4" plastic screw, 4 x M4 x 8 mm flat head screws, 4 x M4 x 8 mm pan head screws, 4 x washers, Mounting Plate, T-bar bracket, Tamper-resistant screws
Certifications and Listing
Compliant Standards: IEC 529, IP66, NEMA Type 4X, UL 94 V-0
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
