Product Information

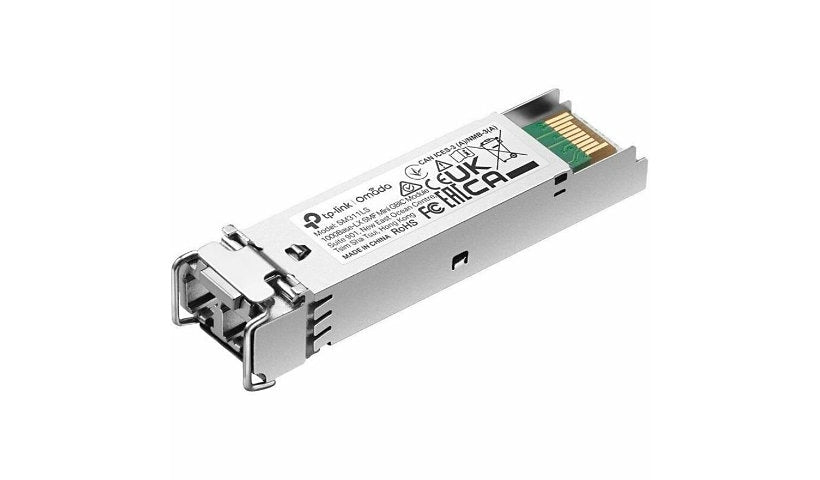

The Omada SM311LS is a 1000Base-LX SFP module for 9/125 µm single-mode fiber, reaching up to 20 km. It is hot pluggable, SFP-MSA compliant and supports digital diagnostic monitoring. This is a transceiver, not a switch.
Key Features
- 1000Base-LX SFP transceiver
- Single-mode fiber, up to 20 km
- Digital diagnostic monitoring
- Hot pluggable, MSA compliant
- Operating range 0 to 70 °C
Product Information
Brand: Omada
Manufacturer: TP-LINK Technologies Co., Ltd
Model: SM311LS
Product Type: SFP (mini-GBIC)
Usage: Data Networking, Optical Network
Compatibility: MSA Compliant
Country of Origin: China
Network and Communication
Data Link Protocols: Gigabit Ethernet
Network Technology: 1000Base-LX
Max Data Transfer Rate: 1.25 Gbit/s
Max Distance Supported: 20 kilometre
Fiber Mode Supported: Single-mode
Features: Digital Diagnostics Monitoring Interface (DDMI)
Connectivity
Ports: 1
Connector Type: LC
Interfaces & Port Details: 1 x LC 1000Base-LX Duplex Network
Technical Information
Min Operating Temperature: 32
Max Operating Temperature: 158
Physical Characteristics
Form Factor: Hot-pluggable, Hot-swappable
Dimensions and Weight
Height: 0.5 inch
Width: 2.2 inch
Depth: 0.6 inch
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
