Product Information

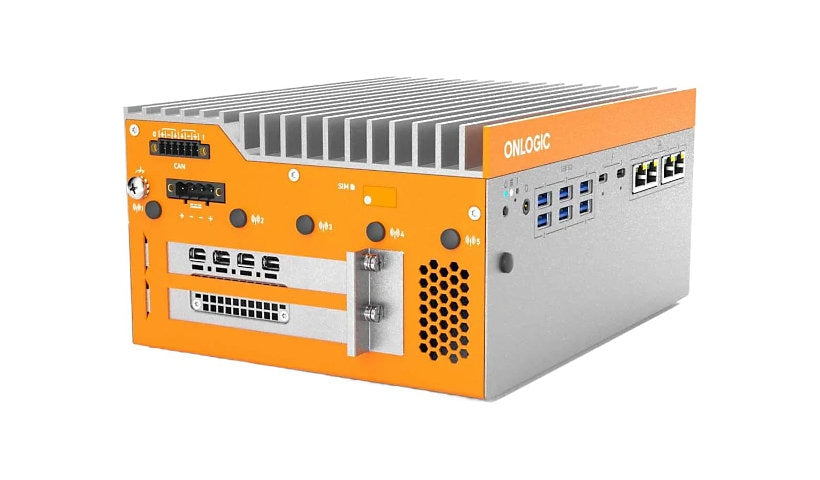

OnLogic's Helix HX524 (HX524) is a fanless industrial PC. Inside, it has an Intel Core Ultra 5 125H processor, 8 GB of DDR5 RAM plus a 256 GB SSD.
Key Features:
- Processor: Intel Core Ultra 5 125H, 14 cores, up to 4.5 GHz
- Memory: 8 GB DDR5
- Storage: 256 GB SSD
- Graphics: Intel Arc Graphics
Specifications:
- Brand: OnLogic
- Manufacturer Part Number: HX524
- Processor: Intel Core Ultra 5 125H
- Cores: 14
- Memory: 8 GB DDR5
- Storage: 256 GB SSD
- Base Clock: 1.2 GHz
- Max Turbo: 4.5 GHz
- CPU Cache: 18 MB
- Max Memory: 96 GB
- SSD Form Factor: M.2 2280
- Internal Slots: 1 M.2 Card - 2260/2280
- Graphics: Intel Arc Graphics
- Video Outputs: DisplayPort
- Ports: 1 x antenna (1 front), 1 x audio line-out - mini-jack (1 front), 2 x DisplayPort (2 side), 2 x Thunderbolt 4 (2 front), 4 x DisplayPort (4 rear), 4 x LAN (2.5Gigabit Ethernet) - RJ-45 (4 front), 4 x serial (4 rear) (RS232 / RS422 / RS485), 5 x antenna (5 rear), 6 x USB 3.2 Gen 2 - Type A (6 front)
- Security Slot: Kensington security slot
- Power Adapter: 330 W
- Input Voltage: DC 24 V
