Product Information

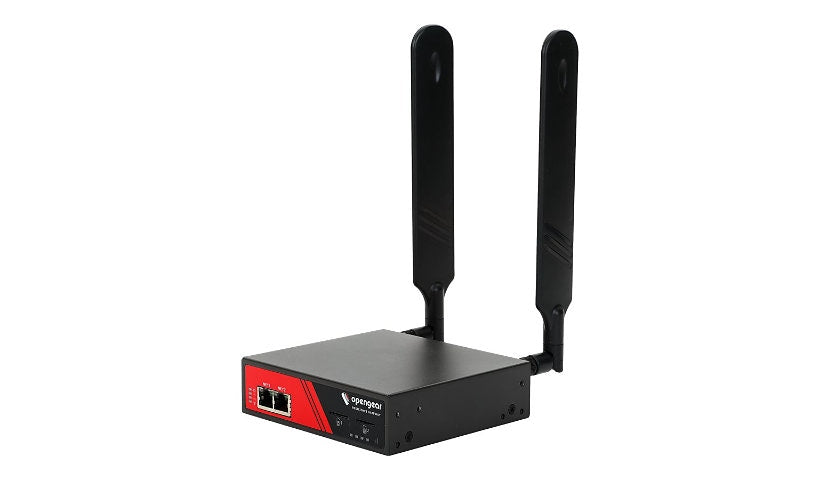

The Opengear ACM7004-2-L is a Resilience Gateway for branch offices, stores and kiosks that keeps an always-on cellular path to remote gear when the main network fails. It has four RS-232 RJ-45 ports with Cisco straight pinout, two Ethernet ports, four USB 2.0 and three SMA antenna ports, with LTE Advanced Pro and multicarrier support. It offers Smart OOB, failover to cellular, IPsec VPN, FIPS 140-2 and AES, sensor support and AD, Kerberos, LDAP, RADIUS and TACACS+. It draws about 11.5 W from an external adapter. TAA compliant.
Key Features
- 4 RS-232 RJ-45 ports
- LTE Advanced Pro
- Failover to cellular
- FIPS 140-2, IPsec
- Environmental sensors
- TAA compliant
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear Resilience Gateway
Model: ACM7004-2-L
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: DDNS, DHCP, FTP, IPSec, NTP
Switching Protocol: Ethernet
Remote Management: HTTPS, SNMP, SSH, TFTP
Authentication Method: Active Directory, CHAP, Kerberos, LDAP, RADIUS, Secure Shell v.2 (SSH2), TACACS+
Encryption: AES, FIPS 140-2, SSL
Cellular Data Connectivity Technology: LTE Advanced Pro
Mobile Broadband Access: Yes
Antennas: 2
Antenna Form Factor: External detachable
Features: 4KV ESD Protector, Cisco straight pinout, DHCP server, FTP server, IP address filtering, LDAP support, Port forwarding, Syslog support, Temperature sensor, TFTP server, VPN support, Water / smoke / motion sensors support
Connectivity
Interface Provided: 2 x 100Base-TX - RJ-45, 3 x antenna - SMA, 4 x RS-232 - RJ-45, 4 x USB 2.0 - Type A
Power
Device Type: External power adapter
Power Consumption Operational: 11.5 watt
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 800 megahertz
RAM Installed: 256 megabyte
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 4 GB
Total Processor Supported: 1
Technical Information
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 90%
MTBF: 100,000 Year
Physical Characteristics
Form Factor: External
Built-in Devices: LED panel
Dimensions and Weight
Height: 1.4 inch
Width: 5.1 inch
Depth: 4.7 inch
Weight: 21.16 ounce
Certifications and Listing
Compliant Standards: AS/NZS CISPR22:2004 Class A, C-Tick, EN 301 511, EN55022:1998 + A1:2000 + A2:2003 Class A, EN55024:1998+A1:2001+A2:2003, FCC Part 15 B Class A, FIPS 140-2, ICES-003 issue 4 Class A, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, PTCRB, R&TTE, RoHS, TUV, UL 1950
TAA Compliant: Yes
Warranty
Service Activation: No
