Product Information

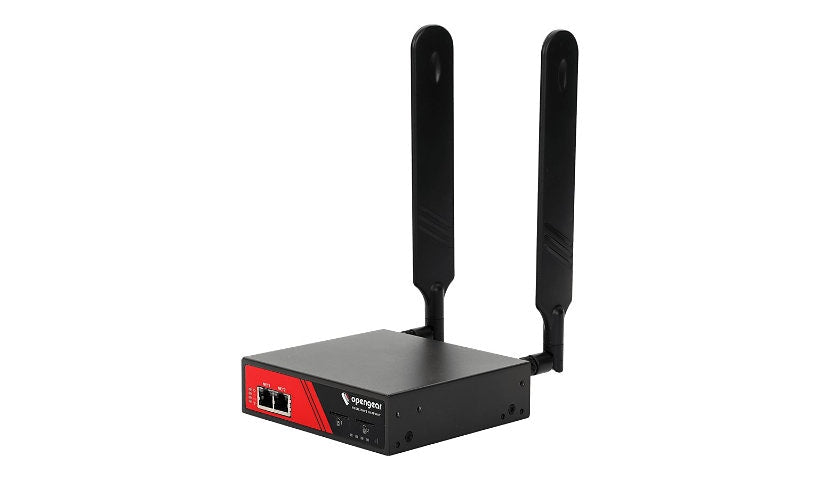

The Opengear ACM7004-5-L-GLB is an ACM7000 Resilience Gateway for small edge sites, using Smart OOB and an embedded global 4G LTE modem (Sierra Wireless EM7565) as backup when the main link fails. It has four RS-232 RJ-45 ports with Cisco straight pinout, a four port gigabit switch, four USB 2.0, three SMA antenna ports and two mini SIM slots, with LTE speeds up to 600 Mbps down and 150 Mbps up. An ARMADA 370 at 800 MHz with 256 MB RAM and 4 GB flash runs Linux with FIPS 140-2, IPsec, ACLs and firewall, and supports temperature, water, smoke and motion sensors. It is managed through Lighthouse. The description notes TAA compliance.
Key Features
- 4 RS-232 serial ports
- 4 port gigabit switch
- Global 4G LTE backup
- Dual mini SIM, 2 antennas
- FIPS 140-2, IPsec
- Environmental sensors
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear Resilience Gateway
Model: ACM7004-5-L-GLB
Product Type: Network management device
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: DDNS, DHCP, FTP, IPSec, NTP
Switching Protocol: Ethernet
Remote Management: HTTPS, SNMP, SSH, TFTP
Authentication Method: CHAP, Kerberos, LDAP, PAP, RADIUS, Secure Shell (SSH), TACACS+
Encryption: FIPS 140-2, SSL
Cellular Data Connectivity Technology: HSPA+, LTE Advanced Pro
Mobile Broadband Access: Yes
Network Device: Download speed: 600 Mbps, Upload speed: 150 Mbps
Antennas: 2
Antenna Form Factor: External detachable
Operating System Edition: Linux
Features: 4KV ESD Protector, Access Control List (ACL) support, Cisco straight pinout, DHCP server, Firewall protection, FTP server, IP address filtering, NTP authentication, Port forwarding, Sierra Wireless EM7565 modem, Syslog support, Temperature sensor, TFTP server, Water / smoke / motion sensors support
Connectivity
Interface Provided: 3 x antenna - SMA, 4 x 1000Base-T - RJ-45, 4 x RS-232 - RJ-45, 4 x USB 2.0 - Type A
Expansion Slots: 2 (total) / 2 (free) x Mini SIM card
Power
Device Type: External power adapter
Memory and Processor
Processor Brand: ARM
Processor Type: ARMADA
Processor Number: 370
Processors Installed: 1
Clock Speed: 800 megahertz
RAM Installed: 256 megabyte
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 4 GB
Total Processor Supported: 1
Technical Information
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 90%
Physical Characteristics
Form Factor: External
Built-in Devices: 32MB flash, 4-port switch, LED panel
Dimensions and Weight
Height: 1.4 inch
Width: 5.1 inch
Depth: 4.7 inch
Weight: 21.16 ounce
