Product Information

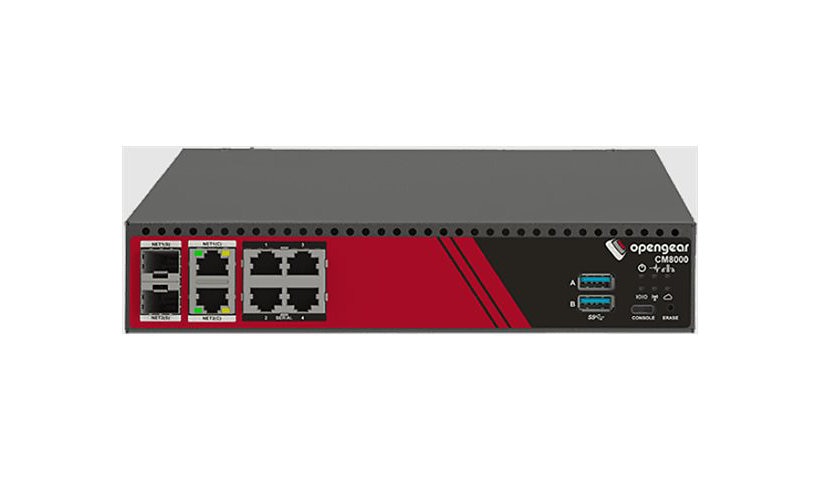

The Opengear CM8004-LSP is the Lighthouse Service Portal enabled CM8004, a compact 4 port console manager for sites with few serial devices or little rack space. It has four RS-232 RJ-45 ports, two gigabit RJ-45/SFP combo ports, two USB 3.0 and a USB-C console. A 1.6 GHz ARM A53 with 4 GB LPDDR4 and 32 GB flash adds TPM 2.0, Smart OOB, IP firewall, IPsec and OpenVPN, with AD, RADIUS and TACACS+ login. It uses an external 110 to 240 V AC adapter and includes a 1U rack kit.
Key Features
- 4 RS-232 RJ-45 ports
- Lighthouse Service Portal
- 2 x GbE RJ-45/SFP combo
- TPM 2.0, Smart OOB
- IPsec and OpenVPN
- 1U rack kit included
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: CM8004
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: IPSec, OpenVPN
Remote Management: SNMP
Authentication Method: Active Directory, RADIUS, TACACS+
Features: Firewall protection, IP-based Firewall Policy, Lighthouse Service Portal (LSP) enabled, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0), Web-based UI
Connectivity
Ports: 4
Interface Provided: 1 x console - USB-C, 2 x Ethernet 1000 - RJ-45/SFP (mini-GBIC), 2 x USB 3.0 - Type A, 4 x RS-232 - RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 110-240 volt
Memory and Processor
Processor Brand: ARM
Processor Number: A53
Processors Installed: 1
Clock Speed: 1.6 GHZ
RAM Installed: 4 GB
Memory Technology: LPDDR4 SDRAM
Flash Memory Installed: 32 GB
Total Processor Supported: 1
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 8.7 inch
Depth: 7 inch
Weight: 2.76 lbs
Included Items
Included Accessories: Rack mount kit
Certifications and Listing
Compliant Standards: AS/NZS CISPR22:2009+A1:2010, C-Tick, CISPR 22:2008, CISPR 24:2010, EN 55022:2010, EN 55024:2010, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2008, EN 61000-4-11:2004, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, RoHS
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
