Product Information

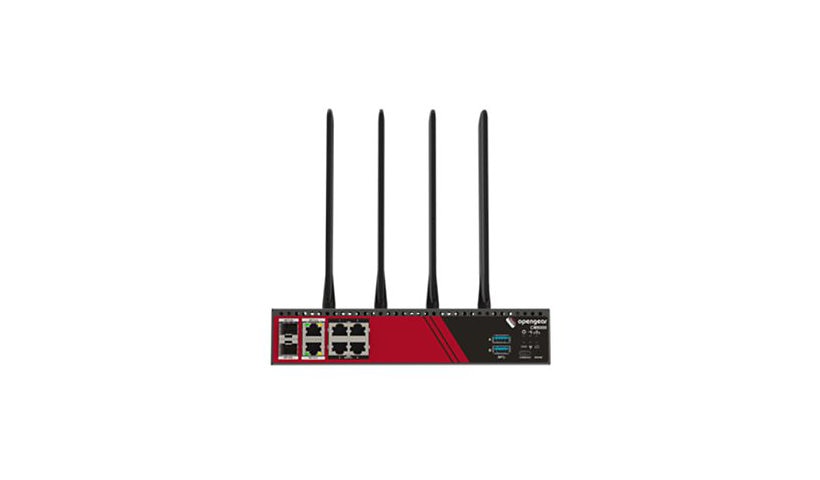

The Opengear CM8008-C is an 8 port Smart OOB console manager with built-in 5G Sub-6 and LTE Cat 20 for cellular out-of-band access. It offers eight RS-232 RJ-45 ports, two gigabit RJ-45/SFP combo ports, two USB 3.0, a USB-C console and two nano SIM slots. Inside are a 1.6 GHz ARM A53, 4 GB LPDDR4 and 32 GB flash with TPM 2.0, IP firewall, IPsec and OpenVPN, plus AD, RADIUS and TACACS+ login. It uses an external power adapter and comes with four cellular antennas, a power cord and a 1U rack kit.
Key Features
- 8 RS-232 RJ-45 ports
- Built-in 5G, LTE Cat 20
- Dual nano SIM
- 2 x GbE RJ-45/SFP combo
- TPM 2.0, IPsec, OpenVPN
- Antennas and rack kit
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: CM8008-C
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: IPSec, OpenVPN
Remote Management: SNMP
Authentication Method: Active Directory, RADIUS, TACACS+
Cellular Data Connectivity Technology: 5G Sub-6 Ghz, LTE CAT20
Mobile Broadband Access: Yes
Features: Firewall protection, IP-based Firewall Policy, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0), Web-based UI
Connectivity
Ports: 8
Interface Provided: 1 x console - USB-C, 2 x Ethernet 1000 - RJ-45/SFP (mini-GBIC), 2 x USB 3.0 - Type A, 8 x RS-232 - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Nano SIM card
Power
Device Type: External power adapter
Memory and Processor
Processor Brand: ARM
Processor Number: A53
Processors Installed: 1
Clock Speed: 1.6 GHZ
RAM Installed: 4 GB
Memory Technology: LPDDR4 SDRAM
Flash Memory Installed: 32 GB
Total Processor Supported: 1
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 8.7 inch
Depth: 7.4 inch
Weight: 3.42 lbs
Included Items
Included Accessories: 4 x cellular antennas, Power cord, Rack mount kit
Certifications and Listing
Compliant Standards: AS/NZS CISPR22:2009+A1:2010, C-Tick, CISPR 22:2008, CISPR 24:2010, EN 55022:2010, EN 55024:2010, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2008, EN 61000-4-11:2004, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, RoHS
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
