Product Information

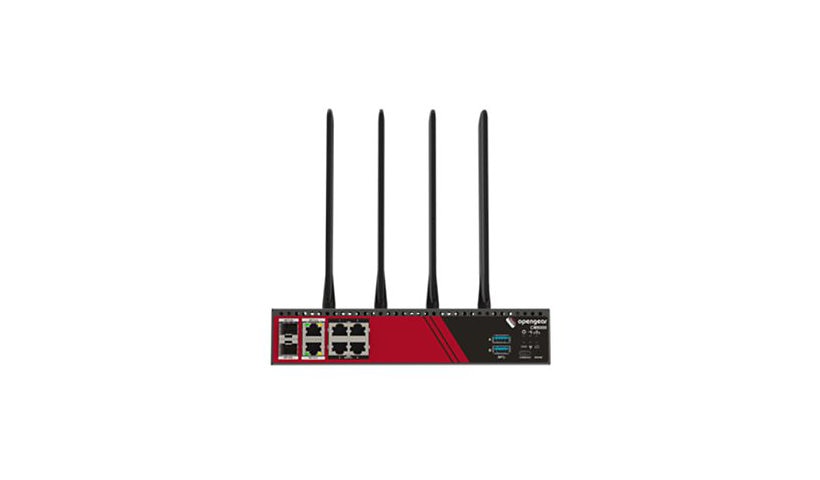

The Opengear CM8008-C-LSP is the Lighthouse Service Portal enabled CM8008-C, an 8 port Smart OOB console manager with 5G Sub-6 and LTE Cat 20. It has eight RS-232 RJ-45 ports, two gigabit RJ-45/SFP combo ports, two USB 3.0, a USB-C console and two nano SIM slots. It runs on a 1.6 GHz ARM A53 with 4 GB LPDDR4 and 32 GB flash, with TPM 2.0, IP firewall, IPsec and OpenVPN, and AD, RADIUS and TACACS+. A temperature sensor is built in, power comes from an external adapter, and four antennas, a power cord and a 1U rack kit are included.
Key Features
- 8 RS-232 RJ-45 ports
- 5G and LTE Cat 20
- Lighthouse Service Portal
- 2 nano SIM slots
- TPM 2.0, Smart OOB
- Antennas and rack kit
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: CM8008-C
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: IPSec, OpenVPN
Remote Management: SNMP
Authentication Method: Active Directory, RADIUS, TACACS+
Cellular Data Connectivity Technology: 5G Sub-6 Ghz, LTE CAT20
Mobile Broadband Access: Yes
Antennas: 4
Antenna Form Factor: External detachable
Features: Firewall protection, IP-based Firewall Policy, Lighthouse Service Portal (LSP) enabled, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0), Web-based UI
Connectivity
Ports: 8
Interface Provided: 1 x console - USB-C, 2 x Ethernet 1000 - RJ-45/SFP (mini-GBIC), 2 x USB 3.0 - Type A, 8 x RS-232 - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Nano SIM card
Power
Device Type: External power adapter
Memory and Processor
Processor Brand: ARM
Processor Number: A53
Processors Installed: 1
Clock Speed: 1.6 GHZ
RAM Installed: 4 GB
Memory Technology: LPDDR4 SDRAM
Flash Memory Installed: 32 GB
Total Processor Supported: 1
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: Temperature sensor
Dimensions and Weight
Height: 1.7 inch
Width: 8.7 inch
Depth: 7.4 inch
Weight: 3.42 lbs
Included Items
Included Accessories: 4 x cellular antennas, Power cord, Rack mount kit
