Product Information

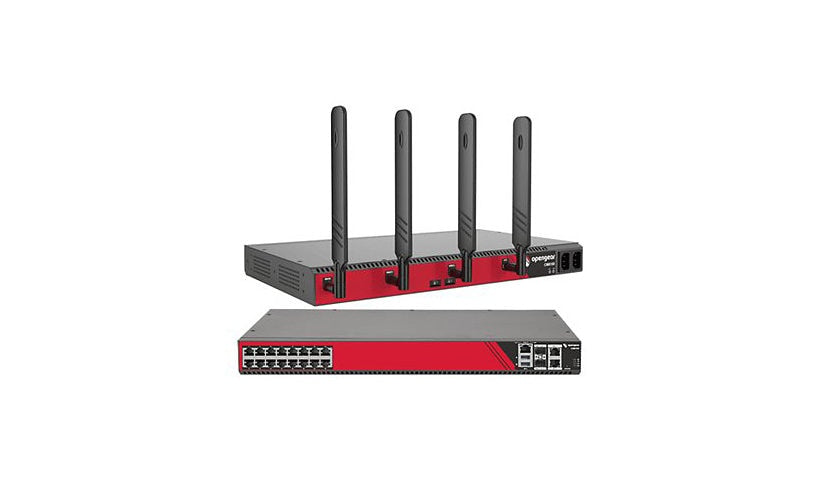

The Opengear CM8116-10G-C-LSP is a 16 port console manager with a globally certified 5G cellular module and Lighthouse Service Portal. It has sixteen RS-232 RJ-45 ports, two 10G SFP+, two gigabit RJ-45, two USB 3.0, an RJ-45 console and two SIM slots, with four cellular antennas included. A dual core 1.6 GHz CPU with 2 GB DDR4 and 32 GB flash supports Docker, Python, TPM 2.0, ZTP, Smart OOB, IPsec and OpenVPN. Dual internal power supplies, MTBF of 150,000 hours per the description, 1U, with a rack kit, two power cords, a 5 ft Cat5 cable and a DB-9 adapter. TAA compliant.
Key Features
- 16 RS-232 RJ-45 ports
- 5G cellular, 2 SIM slots
- 2 x 10G SFP+, 2 x GbE
- 4 cellular antennas included
- Dual PSU, 1U
- TAA compliant
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: CM8116-10G
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: IPSec, IPv4, IPv6, OpenVPN
Remote Management: HTTP, IPv6, LDAP, SNMP, SSH
Authentication Method: Active Directory, LDAP, RADIUS, Secure Shell (SSH), TACACS+
Cellular Data Connectivity Technology: LTE CAT20
Mobile Broadband Access: Yes
Antennas: 4
Antenna Form Factor: External detachable
Features: Authentication, Authorization and Accounting (AAA), Docker Support, Dual core CPU, ESD Protector, Firewall protection, IPSec client, IPv4 support, IPv6 support, Lighthouse Service Portal (LSP) enabled, Management Information Base (MIB), OpenVPN client, Passive cooling, Password protection, Python runtime, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0), Zero-touch provisioning (ZTP)
Connectivity
Ports: 16
Interface Provided: 1 x console - RJ-45, 16 x RS-232 - RJ-45, 2 x 10 Gigabit Ethernet - SFP+, 2 x 1000Base-T - RJ-45, 2 x USB 3.0 - Type A
Expansion Slots: 2 (total) / 2 (free) x SIM card
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: AMD
Processor Number: Cortex-A9
Processors Installed: 1
Clock Speed: 1.6 GHZ
RAM Installed: 2 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Total Processor Supported: 1
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 10.4 inch
Weight: 7.72 lbs
Included Items
Included Accessories: 2 power cords, 4 x cellular antennas, Rack mount kit
Cables: 1 x CAT5 cable - 5 ft, 1 x DB-9 to RJ-45 adapter
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
