Product Information

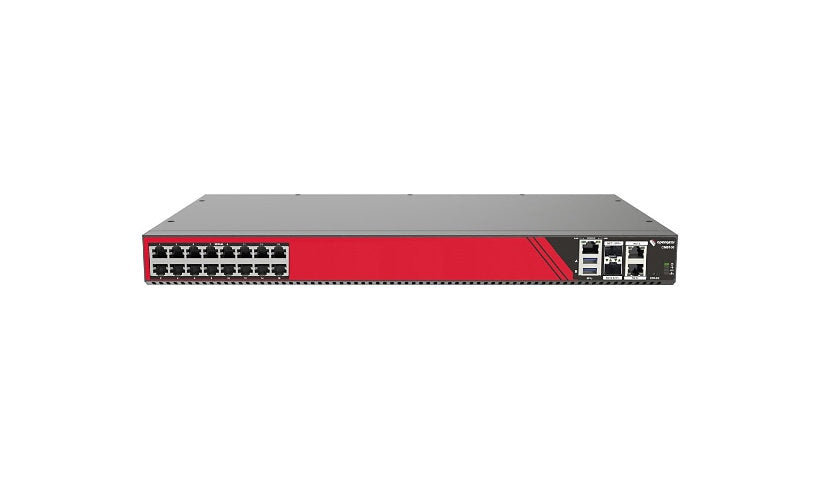

The Opengear CM8116-10G-LSP is the Lighthouse Service Portal enabled version of the CM8116-10G, a cloud managed 16 port console manager. It has sixteen RS-232 RJ-45 ports, two 10G SFP+, two gigabit RJ-45, two USB 3.0 and an RJ-45 console, with a dual core 1.6 GHz CPU, 2 GB DDR4 and 32 GB flash. It supports Docker, Python, TPM 2.0, zero touch provisioning, Smart OOB, IPsec and OpenVPN, IPv6 and AD, LDAP, RADIUS and TACACS+. It is passively cooled with dual power supplies in 1U, and comes with a rack kit, two power cords, a 5 ft Cat5 cable and a DB-9 to RJ-45 adapter. TAA compliant.
Key Features
- 16 RS-232 RJ-45 ports
- Lighthouse Service Portal
- 2 x 10G SFP+, 2 x GbE
- Docker, Python, TPM 2.0
- Dual PSU, 1U
- TAA compliant
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: CM8116-10G
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: IPSec, IPv4, IPv6, OpenVPN
Remote Management: HTTP, IPv6, LDAP, SNMP, SSH
Authentication Method: Active Directory, LDAP, RADIUS, Secure Shell (SSH), TACACS+
Features: Authentication, Authorization and Accounting (AAA), Docker Support, Dual core CPU, ESD Protector, Firewall protection, IPSec client, IPv4 support, IPv6 support, Lighthouse Service Portal (LSP) enabled, Management Information Base (MIB), OpenVPN client, Passive cooling, Password protection, Python runtime, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0), Zero-touch provisioning (ZTP)
Connectivity
Ports: 16
Interface Provided: 1 x console - RJ-45, 16 x RS-232 - RJ-45, 2 x 10 Gigabit Ethernet - SFP+, 2 x 1000Base-T - RJ-45, 2 x USB 3.0 - Type A
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Supplies Installed: 2
Power Supplies Supported: 2
Memory and Processor
Processor Brand: AMD
Processor Number: Cortex-A9
Processors Installed: 1
Clock Speed: 1.6 GHZ
RAM Installed: 2 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Total Processor Supported: 1
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 10.4 inch
Weight: 7.72 lbs
Included Items
Included Accessories: 2 power cords, Rack mount kit
Cables: 1 x CAT5 cable - 5 ft, 1 x DB-9 to RJ-45 adapter
Certifications and Listing
Compliant Standards: 47 CFR Part 15 Class B, AS/NZS CISPR 32:2015, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 63000:2018, ICES-003 issue 7, IEC 60950-1:2005+A1+A2, IEC 62368-1:2018, KS C 9832:2023, KS C 9835:2019, VCCI-CISPR 32:2016
TAA Compliant: Yes
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
