Product Information

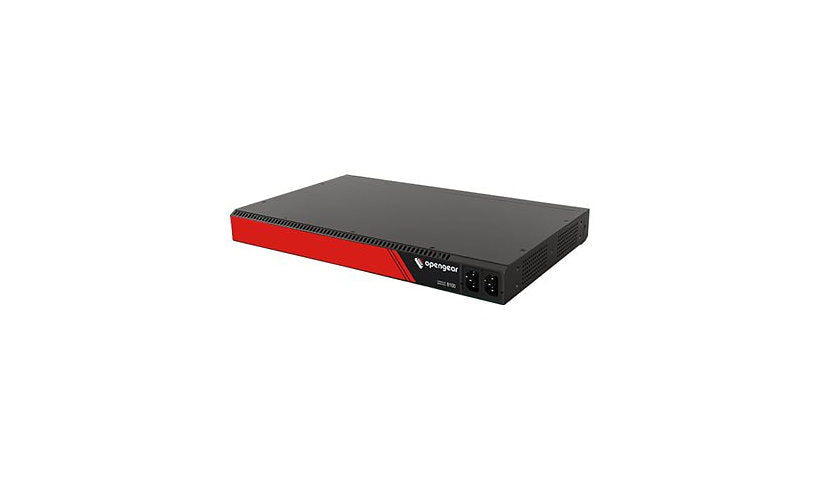

The Opengear CM8132-10G-C-LSP is a 32 port console manager with a globally certified 5G module and Lighthouse Service Portal. It has thirty-two RS-232 RJ-45 ports at up to 230.4 Kbps, two 10G SFP+, two copper Ethernet ports, two USB 3.0 and an RJ-45 console. A Marvell 88F6820 at 1.6 GHz with 2 GB DDR4 and 32 GB flash supports Docker, TPM 2.0, Smart OOB, IPsec VPN, firewall and AAA with AD, LDAP, RADIUS and TACACS+. It is passively cooled with dual redundant supplies in 1U, with rack kit, power cord, DB-9 adapter and 6 ft patch cable. The spec lists 10GBase-T copper ports while the description says 1GbE, so please confirm.
Key Features
- 32 RS-232 RJ-45 ports
- 5G cellular built in
- 2 x 10G SFP+
- Docker, TPM 2.0, Smart OOB
- Dual redundant PSU
- 1U, rack kit included
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: CM8132-10G
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: IPSec, IPv6
Remote Management: HTTP, IPv6, SNMP, SSH
Authentication Method: Active Directory, LDAP, RADIUS, Secure Shell (SSH), TACACS+
Data Transfer Rate: 230.4 Kbps
Cellular Data Connectivity Technology: 5G
Features: Authentication, Authorization and Accounting (AAA), Docker Support, ESD Protector, Firewall protection, Lighthouse Service Portal (LSP) enabled, Management Information Base (MIB), Passive cooling, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0), VPN support
Connectivity
Ports: 32
Interface Provided: 1 x console - RJ-45, 2 x 10Gb Ethernet - SFP+, 2 x 10GBase-T - RJ-45, 2 x USB 3.0 - Type A, 32 x RS-232 - RJ-45
Power
Device Type: Internal power supply
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Memory and Processor
Processor Brand: Marvell
Processor Number: 88F6820
Processors Installed: 1
Clock Speed: 1.6 GHZ
RAM Installed: 2 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Total Processor Supported: 1
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 9.3 inch
Weight: 9.92 lbs
Included Items
Included Accessories: 2 rack mounting ears, 4 x screws, Nuts, Power cord (C14 to C13), Rack mount kit
Cables: 1 x DB-9 to RJ-45 adapter, 1 x patch cable - 6 ft
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32:2015, CISPR 32:2016, CNS13438:2006, EN 55032:2017, EN 55035:2017, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 61000-4-11:2004, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, FCC Part 15 B Class A, ICES-003 issue 7, IEC 61000-3-2:2018, IEC 61000-3-3:2013, IEC 61000-4-11:2004, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-8:2009, IEC 62368, RoHS, VCCI 32
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
