Product Information

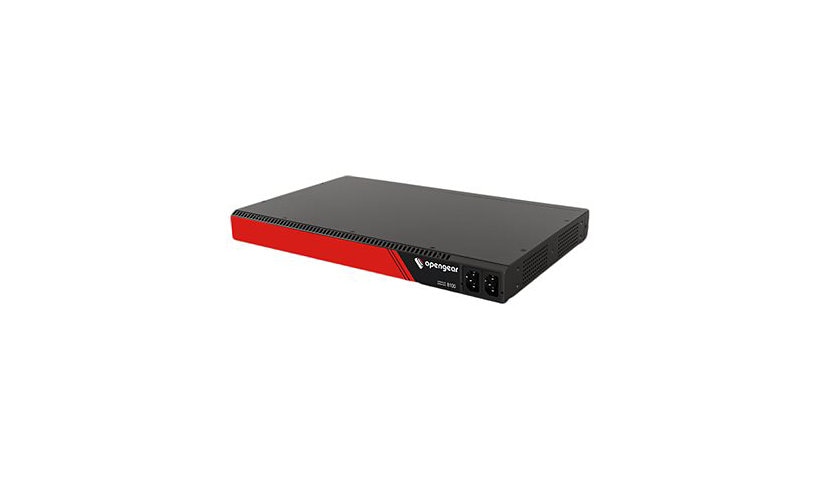

The Opengear CM8148-DDC is the dual DC power version of the 48 port CM8148 console manager, running on 40 to 72 V DC. It has forty-eight RS-232 RJ-45 ports with straight through Cisco style cabling, two gigabit RJ-45, two USB 3.0 and an RJ-45 console, with 1500 V isolation. A Marvell 88F6820 at 1.6 GHz with 2 GB DDR4 and 32 GB flash supports Docker, Python, TPM 2.0, ZTP, Smart OOB, IPsec and OpenVPN, with AD, LDAP, RADIUS and TACACS+. It is passively cooled at about 15 W in 1U, with rack ears, two power cords, screws, a DB-9 adapter and a 6 ft patch cable.
Key Features
- 48 RS-232 RJ-45 ports
- Dual DC 40 to 72 V
- 1500 V isolation
- Docker, Python, TPM 2.0
- Passive cooling, 15 W
- 1U, rack kit included
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: CM8148
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: IPSec, IPv6, OpenVPN
Remote Management: IPv6, SNMP, SSH
Authentication Method: Active Directory, LDAP, RADIUS, Secure Shell (SSH), TACACS+
Data Transfer Rate: 230.4 Kbps
Features: 1500V isolation, Authentication, Authorization and Accounting (AAA), Docker Support, ESD Protector, Firewall protection, Management Information Base (MIB), Passive cooling, Python runtime, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0), VPN support, Zero-touch provisioning (ZTP)
Connectivity
Ports: 48
Interface Provided: 1 x console - RJ-45, 2 x 1000Base-T - RJ-45, 2 x USB 3.0 - Type A, 48 x RS-232 - RJ-45
Power
Device Type: Internal power supply
Required Voltage: DC 40 - 72 volt
Power Consumption Operational: 15 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Memory and Processor
Processor Brand: Marvell
Processor Number: 88F6820
Processors Installed: 1
Clock Speed: 1.6 GHZ
RAM Installed: 2 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Total Processor Supported: 1
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 9.3 inch
Weight: 9.92 lbs
Included Items
Included Accessories: 2 rack mounting ears, 2 x power cords, 4 x screws, Nuts, Rack mount kit
Cables: 1 x DB-9 to RJ-45 adapter, 1 x patch cable - 6 ft
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32:2015, CISPR 32:2016, CNS13438:2006, EN 55032:2017, EN 55035:2017, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 61000-4-11:2004, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, FCC Part 15 B Class A, ICES-003 issue 7, IEC 1950, IEC 61000-3-2:2018, IEC 61000-3-3:2013, IEC 61000-4-11:2004, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-8:2009, IEC 62368, RoHS, VCCI 32
