Product Information

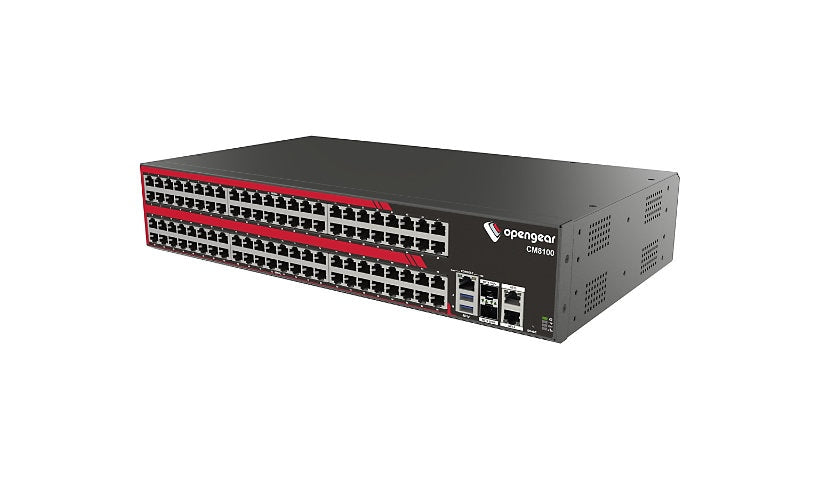

The Opengear CM8196-10G is a 96 port high density console manager for large data centers, reaching routers, switches, firewalls, PDUs and serial consoles securely out of band. It has ninety-six RS-232 RJ-45 ports at up to 230.4 Kbps, two 10G SFP+, two gigabit RJ-45, two USB 3.0 and an RJ-45 console. A dual core Marvell 88F6820 at 1.6 GHz with 2 GB DDR4 and 32 GB flash supports Docker, TPM 2.0, Smart OOB, automated failover, IPsec and OpenVPN, with AD, LDAP, RADIUS and TACACS+. Dual redundant supplies draw about 30 W in 2U, with rack kit, two C13 to C14 cords, a DB-9 adapter and a 6 ft patch cable. The description notes TAA compliance.
Key Features
- 96 RS-232 RJ-45 ports
- 2 x 10G SFP+, 2 x GbE
- Docker, TPM 2.0
- Automated failover
- Dual redundant PSU
- 2U, rack kit and cords
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: CM8196-10G
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: IPSec, IPv6, OpenVPN
Remote Management: HTTP, IPv6, SNMP, SSH
Authentication Method: Active Directory, LDAP, RADIUS, Secure Shell (SSH), TACACS+
Data Transfer Rate: 230.4 Kbps
Features: Authentication, Authorization and Accounting (AAA), Automated failover, Docker Support, Dual core CPU, Firewall protection, Management Information Base (MIB), Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0), VPN support
Connectivity
Ports: 96
Interface Provided: 1 x console - RJ-45, 2 x 1000Base-T - RJ-45, 2 x 10Gb Ethernet - SFP+, 2 x USB 3.0 - Type A, 96 x RS-232 - RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Power Consumption Operational: 30 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Memory and Processor
Processor Brand: Marvell
Processor Number: 88F6820
Processors Installed: 1
Clock Speed: 1.6 GHZ
RAM Installed: 2 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Total Processor Supported: 1
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Dimensions and Weight
Height: 3.4 inch
Width: 17.3 inch
Depth: 10.4 inch
Weight: 9.92 lbs
Included Items
Included Accessories: 2 power cords (C13 to C14), 2 rack mounting ears, 4 x screws, Nuts, Rack mount kit
Cables: 1 x DB-9 to RJ-45 adapter, 1 x patch cable - 6 ft
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32:2015, CISPR 32:2016, CNS13438:2006, EN 55032:2017, EN 55035:2017, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 61000-4-11:2004, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, FCC Part 15 B Class A, ICES-003 issue 7, IEC 61000-3-2:2018, IEC 61000-3-3:2013, IEC 61000-4-11:2004, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-8:2009, IEC 62368, RoHS, VCCI 32
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
