Product Information

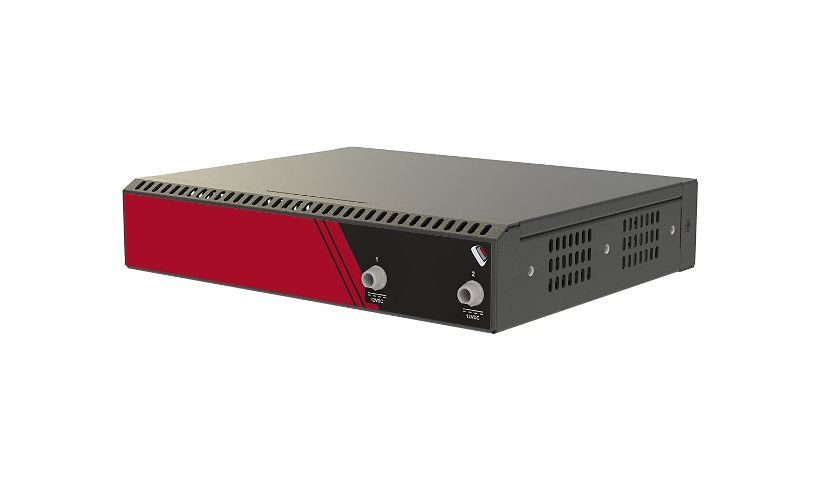

The Opengear OM1304-4E is a compact OM1300 edge appliance that pairs Smart OOB console access with four built-in switch ports, working with Lighthouse software. It has four RS-232 RJ-45 ports, four 10/100/1000 switch ports, two gigabit RJ-45/SFP combo uplinks, two USB 3.0 and a USB-C console. A 1.6 GHz ARM A53 with 4 GB LPDDR4 and 32 GB flash supports TPM 2.0, IP firewall, IPsec and OpenVPN, with AD, RADIUS and TACACS+. It runs on an external 110 to 240 V AC adapter and fits 1U with the included rack kit.
Key Features
- 4 RS-232 plus 4 port switch
- 2 x GbE RJ-45/SFP combo
- TPM 2.0, Smart OOB
- IPsec and OpenVPN
- AD, RADIUS, TACACS+
- 1U rack kit included
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: OM1300
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: IPSec, OpenVPN
Remote Management: SNMP
Authentication Method: Active Directory, RADIUS, TACACS+
Features: Firewall protection, IP-based Firewall Policy, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0), Web-based UI
Connectivity
Ports: 4
Interface Provided: 1 x console - USB-C, 2 x Ethernet 1000 - RJ-45/SFP (mini-GBIC), 2 x USB 3.0 - Type A, 4 x 10/100/1000Base-T - RJ-45, 4 x RS-232 - RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 110-240 volt
Memory and Processor
Processor Brand: ARM
Processor Number: A53
Processors Installed: 1
Clock Speed: 1.6 GHZ
RAM Installed: 4 GB
Memory Technology: LPDDR4 SDRAM
Flash Memory Installed: 32 GB
Total Processor Supported: 1
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 8.7 inch
Depth: 7 inch
Weight: 3.2 lbs
Included Items
Included Accessories: Rack mount kit
Certifications and Listing
Compliant Standards: AS/NZS CISPR22:2009+A1:2010, C-Tick, CISPR 22:2008, CISPR 24:2010, EN 55022:2010, EN 55024:2010, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2008, EN 61000-4-11:2004, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, RoHS
