Product Information

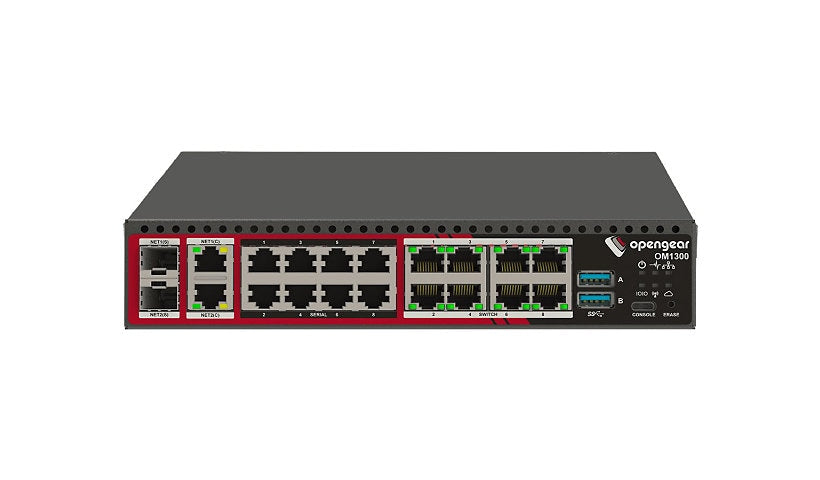

The Opengear OM1308-8E-C-LSP is a Lighthouse Service Portal enabled OM1300 console manager with 5G cellular fallback and an integrated switch. It has eight RS-232 RJ-45 ports, eight 10/100/1000 switch ports, two gigabit RJ-45/SFP combo uplinks, two USB 3.0, a USB-C console and four nano SIM slots, with 5G Sub-6 and LTE Cat 20. A 1.6 GHz ARM A53 with 4 GB LPDDR4 and 32 GB flash supports TPM 2.0, IP firewall, IPsec and OpenVPN, with AD, RADIUS and TACACS+. It has a temperature sensor and external adapter, and comes with four cellular antennas, a power cord and a 1U rack kit.
Key Features
- 8 serial plus 8 port switch
- 5G Sub-6, LTE Cat 20
- 4 nano SIM slots
- Lighthouse Service Portal
- TPM 2.0, Smart OOB
- Antennas and rack kit
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: OM1308-8E-C-LSP
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: IPSec, OpenVPN
Remote Management: SNMP
Authentication Method: Active Directory, RADIUS, TACACS+
Cellular Data Connectivity Technology: 5G Sub-6 Ghz, LTE CAT20
Mobile Broadband Access: Yes
Antennas: 4
Antenna Form Factor: External detachable
Features: Firewall protection, IP-based Firewall Policy, Lighthouse Service Portal (LSP) enabled, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0), Web-based UI
Connectivity
Ports: 8
Interface Provided: 1 x console - USB-C, 2 x Ethernet 1000 - RJ-45/SFP (mini-GBIC), 2 x USB 3.0 - Type A, 8 x 10/100/1000Base-T - RJ-45, 8 x RS-232 - RJ-45
Expansion Slots: 4 (total) / 4 (free) x Nano SIM card
Power
Device Type: External power adapter
Memory and Processor
Processor Brand: ARM
Processor Number: A53
Processors Installed: 1
Clock Speed: 1.6 GHZ
RAM Installed: 4 GB
Memory Technology: LPDDR4 SDRAM
Flash Memory Installed: 32 GB
Total Processor Supported: 1
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: Temperature sensor
Dimensions and Weight
Height: 1.7 inch
Width: 8.7 inch
Depth: 7.4 inch
Weight: 3.64 lbs
Included Items
Included Accessories: 4 x cellular antennas, Power cord, Rack mount kit
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
