Product Information

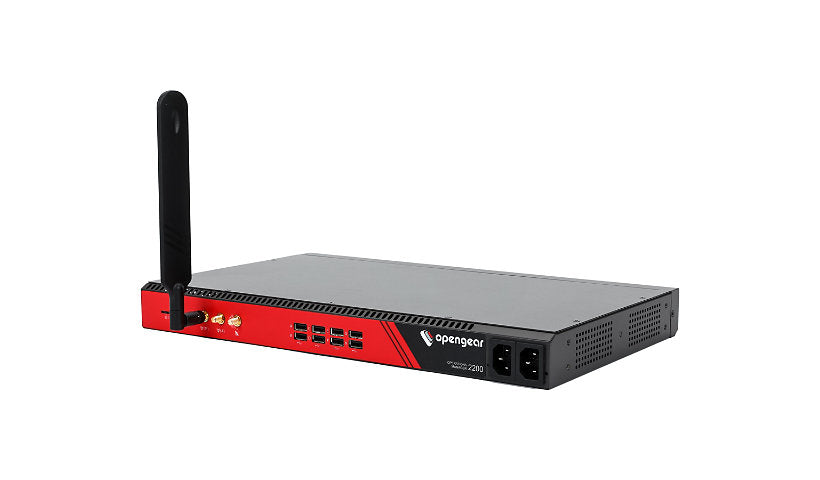

The Opengear OM2224-24E-10G-L is a TAA compliant OM2200-10G Operations Manager with twenty-four RS-232 RJ-45 ports, a built-in 24 port gigabit switch, 10G Ethernet and LTE Advanced Pro cellular. An AMD GX-412TC quad core at 1.4 GHz with 8 GB DDR3 and a 64 GB M.2 SSD runs Docker and Python with TPM 2.0, Smart OOB, OpenVPN and firewall, plus AD, Kerberos, LDAP, RADIUS and TACACS+. It is passively cooled in 1U, and includes two cellular antennas, two C13 to C14 cords, a rack kit, a crossover cable and a 6 ft network cable.
Key Features
- 24 RS-232 RJ-45 ports
- 24 port GbE switch, 10G
- LTE Advanced Pro
- x86, 8 GB, 64 GB SSD
- Docker, Python, TPM 2.0
- 1U, TAA compliant
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: OM2224-24E-10G-L
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Country: Global
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: OpenVPN
Remote Management: SNMP, SSH
Authentication Method: Active Directory, Kerberos, LDAP, RADIUS, Secure Shell (SSH), TACACS+
Data Transfer Rate: 230.4 Kbps
Cellular Data Connectivity Technology: LTE Advanced Pro
Mobile Broadband Access: Yes
Cellular Band: HSPA+ B1/B19/B2/B3/B4/B5/B6/B8/B9 / LTE B1/B12/B13/B18/B19/B2/B20/B26/B28/B29/B3/B30/B32/B4/B41/B42/B43/B46/B48/B5/B66/B7/B8/B9
Features: Authentication, Authorization and Accounting (AAA), Docker Support, Firewall protection, Management Information Base (MIB), Passive cooling, Password protection, Python runtime, Quad-core CPU, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0)
Connectivity
Ports: 24
Power
Device Type: Internal power supply
Memory and Processor
Hard Drive Form Factor (metric): M.2
Processor Brand: AMD
Processor Type: GX-412TC
Processors Installed: 1
Clock Speed: 1.4 GHZ
RAM Installed: 8 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 16 megabyte
Total Processor Supported: 1
Hard Drive Capacity: 64 GB
Hard Drive Form Factor: M.2
Port Expansion Hard Drive Type: SSD
Drive Interface: Serial ATA-600
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90%
MTBF: 100,000 hour(s)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: 24-port switch
Installed Quantity: 1
Dimensions and Weight
Height: 1.8 inch
Width: 17.3 inch
Depth: 10.2 inch
Weight: 7.72 lbs
Included Items
Included Accessories: 2 power cords (C13 to C14), 2 x cellular antennas, Rack mount kit
Cables: 1 x crossover cable, 1 x network cable - 6 ft
