Product Information

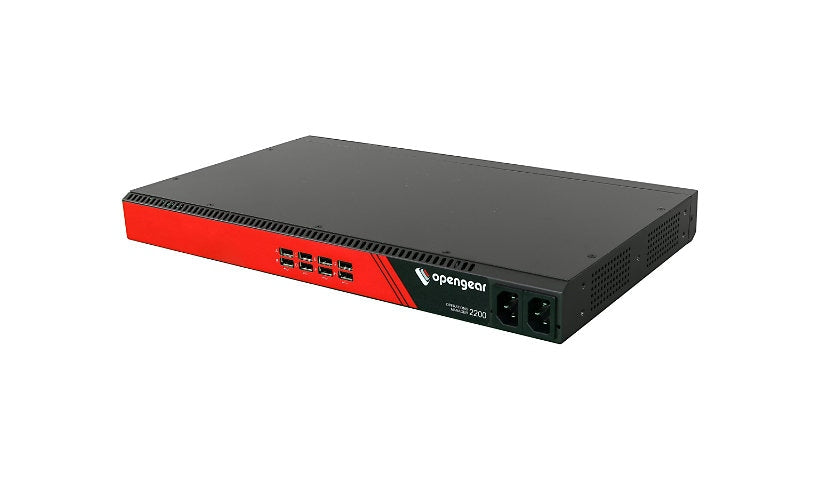

The Opengear OM2224-24E-10G-L-LSP is a TAA compliant OM2200-10G Operations Manager with LTE Advanced Pro and Lighthouse Service Portal. It has twenty-four RS-232 RJ-45 ports at up to 230.4 Kbps, a built-in 24 port gigabit switch, two 10G SFP+, two gigabit SFP, three SMA antenna ports and an RJ-45 console. An AMD GX-412TC at 1.4 GHz with 8 GB DDR3 and a 64 GB M.2 SSD runs Python, TPM 2.0, ZTP, Smart OOB and OpenVPN, with AD, Kerberos, LDAP, RADIUS and TACACS+. It fits 1U with two power cords, a rack kit, a crossover cable and a 6 ft network cable.
Key Features
- 24 RS-232 plus 24 port switch
- 2 x 10G SFP+
- LTE Advanced Pro
- Lighthouse Service Portal
- x86, Python, TPM 2.0
- 1U, TAA compliant
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: OM2224-24E-10G
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: OpenVPN
Remote Management: SNMP, SSH
Authentication Method: Active Directory, Kerberos, LDAP, RADIUS, Secure Shell (SSH), TACACS+
Data Transfer Rate: 230.4 Kbps
Cellular Data Connectivity Technology: LTE Advanced Pro
Mobile Broadband Access: Yes
Features: Authentication, Authorization and Accounting (AAA), Firewall protection, IPv4 support, IPv6 support, LDAP support, Lighthouse Service Portal (LSP) enabled, OpenVPN client, Password protection, Python runtime, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0), Zero-touch provisioning (ZTP)
Connectivity
Ports: 24
Interface Provided: 1 x console - RJ-45, 2 x 10 Gigabit Ethernet - SFP+, 2 x Ethernet 1000 - SFP (mini-GBIC), 24 x 1000Base-T - RJ-45, 24 x RS-232 - RJ-45, 3 x antenna - SMA
Power
Device Type: Internal power supply
Memory and Processor
Hard Drive Form Factor (metric): M.2
Processor Brand: AMD
Processor Type: GX-412TC
Processors Installed: 1
Clock Speed: 1.4 GHZ
RAM Installed: 8 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 16 megabyte
Total Processor Supported: 1
Hard Drive Capacity: 64 GB
Hard Drive Form Factor: M.2
Port Expansion Hard Drive Type: SSD
Drive Interface: Serial ATA-600
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90%
MTBF: 100,000 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: 24-port switch
Installed Quantity: 1
Dimensions and Weight
Height: 1.8 inch
Width: 17.3 inch
Depth: 10.2 inch
Weight: 7.72 lbs
Included Items
Included Accessories: 2 power cords (C13 to C14), Rack mount kit
Cables: 1 x crossover cable, 1 x network cable - 6 ft
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
