Product Information

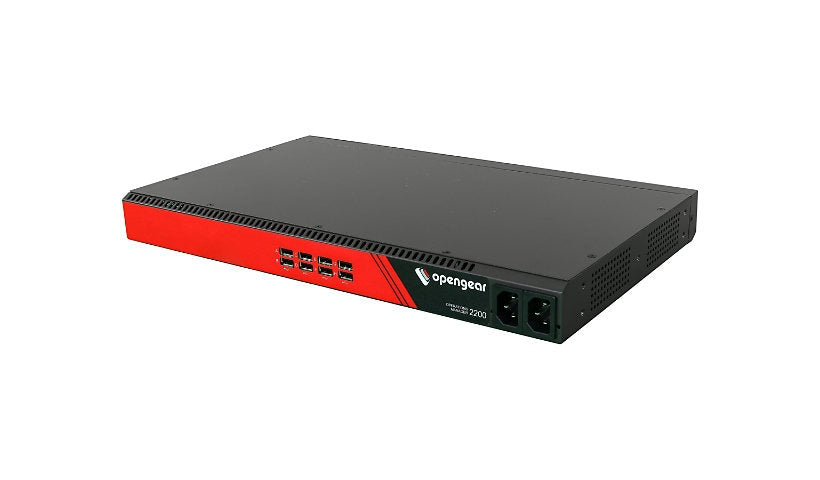

The Opengear OM2224-24E-10G is an Operations Manager that pairs a Smart OOB console server with automation. It has twenty-four RS-232 RJ-45 ports, a built-in 24 port gigabit switch (25 gigabit RJ-45 total), one 10G SFP+ and eight USB 2.0. An AMD GX-412TC at 1.4 GHz with 8 GB DDR3 and a 64 GB M.2 SSD runs Python, TPM 2.0, zero touch provisioning, OpenVPN and firewall, with SSH and TACACS+. It fits 1U with a rack kit and two 5 ft patch cables included.
Key Features
- 24 RS-232 RJ-45 ports
- Built-in 24 port GbE switch
- 10G SFP+ uplink
- 8 GB RAM, 64 GB SSD
- Python, TPM 2.0, ZTP
- 1U rack kit included
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: OM2224-24E-10G
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Remote Management: SSH
Authentication Method: Secure Shell (SSH), TACACS+
Data Transfer Rate: 230.4 Kbps
Features: Authentication, Authorization and Accounting (AAA), Firewall protection, IPv4 support, IPv6 support, LDAP support, OpenVPN client, Password protection, Python runtime, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0), Zero-touch provisioning (ZTP)
Connectivity
Ports: 24
Interface Provided: 1 x 10Gb Ethernet - SFP+, 24 x RS-232 - RJ-45, 25 x 1000Base-T - RJ-45, 8 x USB 2.0 - Type A
Power
Device Type: Internal power supply
Memory and Processor
Hard Drive Form Factor (metric): M.2
Processor Brand: AMD
Processor Type: GX-412TC
Processors Installed: 1
Clock Speed: 1.4 GHZ
RAM Installed: 8 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 16 megabyte
Total Processor Supported: 1
Hard Drive Capacity: 64 GB
Hard Drive Form Factor: M.2
Port Expansion Hard Drive Type: SSD
Drive Interface: Serial ATA-600
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90%
MTBF: 100,000 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: 24-port switch
Installed Quantity: 1
Dimensions and Weight
Height: 1.8 inch
Width: 17.3 inch
Depth: 10.2 inch
Weight: 7.72 lbs
Included Items
Included Accessories: Rack mount kit
Cables: 2 x patch cable - 5 ft
