Product Information

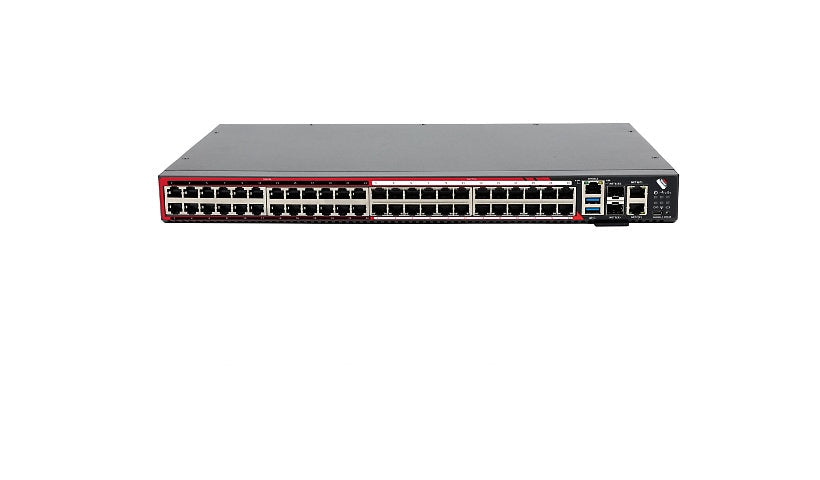

The Opengear OM2224-24E-L-LSP is the Lighthouse Service Portal enabled OM2224-24E with LTE Advanced Pro Cat 12, a TAA compliant x86 Operations Manager. It has twenty-four RS-232 ports, a built-in 24 port gigabit switch and two SIM slots. An AMD GX-412TC quad core at 1.4 GHz with 8 GB DDR3 and a 64 GB M.2 SSD runs Docker and Python, with TPM 2.0, ZTP, IPsec and OpenVPN, IPv6 and AD, Kerberos, LDAP, RADIUS and TACACS+. It is passively cooled in 1U, and ships with two cellular antennas, an antenna extender, two power cords, a rack kit, a 5 ft Cat5 cable and a DB-9 adapter.
Key Features
- 24 RS-232 ports
- Built-in 24 port GbE switch
- LTE Cat 12, 2 SIM slots
- Lighthouse Service Portal
- x86, Docker, TPM 2.0
- TAA compliant
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: OM2224-24E
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Country: Global
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: IPSec, IPv4, IPv6, OpenVPN
Remote Management: HTTP, IPv6, LDAP, SNMP, SSH
Authentication Method: Active Directory, Kerberos, LDAP, RADIUS, Secure Shell (SSH), TACACS+
Cellular Data Connectivity Technology: LTE Advanced Pro Cat 12
Mobile Broadband Access: Yes
Antennas: 2
Antenna Form Factor: External detachable
Features: Authentication, Authorization and Accounting (AAA), Docker Support, Firewall protection, IPSec client, IPv4 support, IPv6 support, Lighthouse Service Portal (LSP) enabled, Management Information Base (MIB), OpenVPN client, Passive cooling, Password protection, Python runtime, Quad-core CPU, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0), Zero-touch provisioning (ZTP)
Connectivity
Ports: 24
Expansion Slots: 2 (total) / 2 (free) x SIM card
Power
Device Type: Internal power supply
Memory and Processor
Hard Drive Form Factor (metric): M.2
Processor Brand: AMD
Processor Type: GX-412TC
Processors Installed: 1
Clock Speed: 1.4 GHZ
RAM Installed: 8 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 16 megabyte
Total Processor Supported: 1
Hard Drive Capacity: 64 GB
Hard Drive Form Factor: M.2
Port Expansion Hard Drive Type: SSD
Drive Interface: Serial ATA-600
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90%
MTBF: 100,000 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: 24-port switch
Installed Quantity: 1
Dimensions and Weight
Height: 1.8 inch
Width: 17.3 inch
Depth: 10.2 inch
Weight: 7.72 lbs
Included Items
Included Accessories: 2 power cords, 2 x cellular antennas, Cellular antenna extender, Rack mount kit
Cables: 1 x CAT5 cable - 5 ft, 1 x DB-9 to RJ-45 adapter
