Product Information

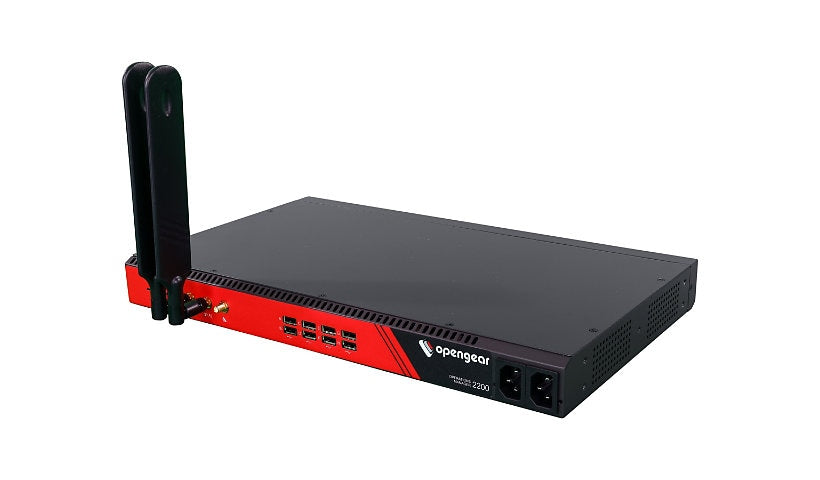

The Opengear OM2224-24E-L-US is a NetOps Operations Manager with LTE cellular (HSPA+ and LTE bands) that combines Smart OOB with automation through Lighthouse. It has twenty-four RS-232 ports at up to 230.4 Kbps and a built-in 24 port gigabit switch. An AMD GX-412TC at 1.4 GHz with 8 GB DDR3 and a 64 GB M.2 SSD runs Python with TPM 2.0, ZTP, OpenVPN, firewall, IPv6 and SSH and TACACS+. It fits 1U with an internal supply, two cellular antennas, a rack kit and two 5 ft patch cables.
Key Features
- 24 RS-232 plus 24 port switch
- LTE cellular built in
- x86, 8 GB, 64 GB SSD
- Python, TPM 2.0, ZTP
- 2 antennas included
- 1U rack mount
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: OM2224-24E-L
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Remote Management: SSH
Authentication Method: Secure Shell (SSH), TACACS+
Data Transfer Rate: 230.4 Kbps
Mobile Broadband Access: Yes
Cellular Band: HSPA+ B1/B19/B2/B3/B4/B5/B6/B8/B9 / LTE B1/B12/B18/B19/B2/B20/B26/B28/B29/B3/B30/B32/B4/B41/B42/B43/B46/B48/B5/B66/B7/B8/B9
Features: Authentication, Authorization and Accounting (AAA), Firewall protection, IPv4 support, IPv6 support, LDAP support, OpenVPN client, Password protection, Python runtime, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0), Zero-touch provisioning (ZTP)
Connectivity
Ports: 24
Power
Device Type: Internal power supply
Memory and Processor
Hard Drive Form Factor (metric): M.2
Processor Brand: AMD
Processor Type: GX-412TC
Processors Installed: 1
Clock Speed: 1.4 GHZ
RAM Installed: 8 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 16 megabyte
Total Processor Supported: 1
Hard Drive Capacity: 64 GB
Hard Drive Form Factor: M.2
Port Expansion Hard Drive Type: SSD
Drive Interface: Serial ATA-600
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90%
MTBF: 100,000 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: 24-port switch
Installed Quantity: 1
Dimensions and Weight
Height: 1.8 inch
Width: 17.3 inch
Depth: 10.2 inch
Weight: 7.72 lbs
Included Items
Included Accessories: 2 x cellular antennas, Rack mount kit
Cables: 2 x patch cable - 5 ft
