Product Information

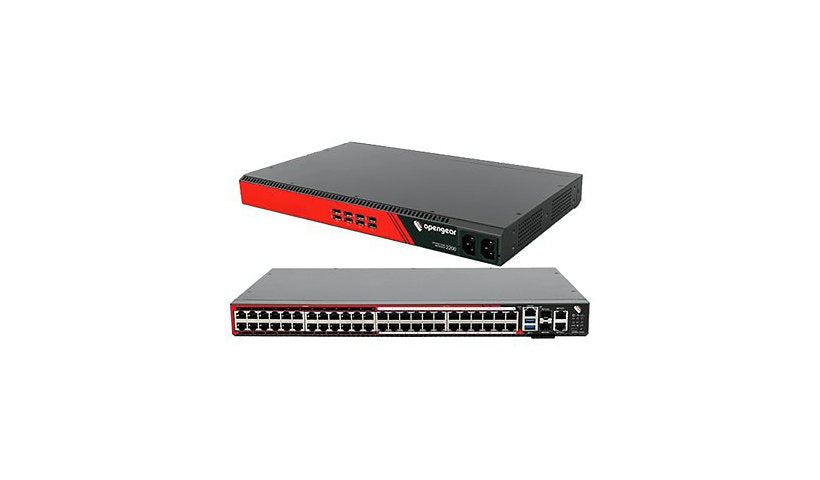

The Opengear OM2224-24E-LSP is the Lighthouse Service Portal enabled OM2224-24E, a cloud managed Operations Manager for data centers. It has twenty-four RS-232 RJ-45 ports, a 24 port gigabit switch, two 1000Base-X SFP, two USB 3.0, eight USB management ports and RJ-45 and micro USB consoles. A quad core AMD GX-412TC with 8 GB DDR3 and a 64 GB M.2 SSD runs Docker, Python, TPM 2.0, ZTP, Smart OOB, IPsec and OpenVPN, with AD, Kerberos, LDAP, RADIUS and TACACS+. Passively cooled in 1U, with two cords, a rack kit, a 5 ft Cat5 cable and a DB-9 adapter.
Key Features
- 24 RS-232 plus 24 port switch
- 2 x SFP, 8 USB console
- Lighthouse Service Portal
- x86, Docker, TPM 2.0
- Passive cooling
- 1U, rack kit included
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: OM2224-24E
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: IPSec, IPv4, IPv6, OpenVPN
Remote Management: HTTP, IPv6, LDAP, SNMP, SSH
Authentication Method: Active Directory, Kerberos, LDAP, RADIUS, Secure Shell (SSH), TACACS+
Features: Authentication, Authorization and Accounting (AAA), Docker Support, Firewall protection, IPSec client, IPv4 support, IPv6 support, Lighthouse Service Portal (LSP) enabled, Management Information Base (MIB), OpenVPN client, Passive cooling, Password protection, Python runtime, Quad-core CPU, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0), Zero-touch provisioning (ZTP)
Connectivity
Ports: 24
Interface Provided: 1 x console - micro-USB, 1 x console - RJ-45, 2 x 1000Base-X - SFP (mini-GBIC), 2 x USB 3.0 - Type A, 24 x 1000Base-T - RJ-45, 24 x RS-232 - RJ-45, 8 x management (USB) - Type A
Power
Device Type: Internal power supply
Memory and Processor
Hard Drive Form Factor (metric): M.2
Processor Brand: AMD
Processor Type: GX-412TC
Processors Installed: 1
Clock Speed: 1.4 GHZ
RAM Installed: 8 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 16 megabyte
Total Processor Supported: 1
Hard Drive Capacity: 64 GB
Hard Drive Form Factor: M.2
Port Expansion Hard Drive Type: SSD
Drive Interface: Serial ATA-600
Technical Information
MTBF: 100,000 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: 24-port switch
Installed Quantity: 1
Dimensions and Weight
Height: 1.8 inch
Width: 17.3 inch
Depth: 10.2 inch
Weight: 7.72 lbs
Included Items
Included Accessories: 2 power cords, Rack mount kit
Cables: 1 x CAT5 cable - 5 ft, 1 x DB-9 to RJ-45 adapter
