Product Information

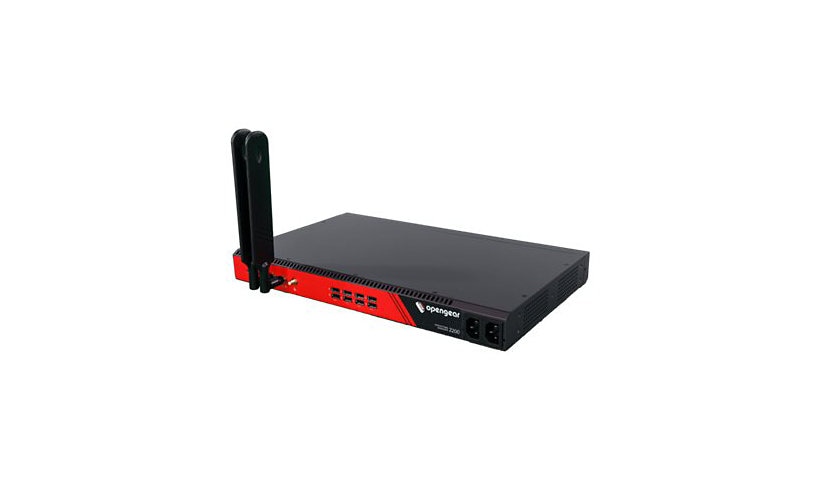

The Opengear OM2248-10G is a TAA compliant OM2200-10G Operations Manager for large data centers, with forty-eight RS-232 RJ-45 ports at up to 230.4 Kbps, one 10G SFP+, one gigabit RJ-45 and an RJ-45 console. A quad core AMD GX-412TC at 1.4 GHz with 8 GB DDR3 and a 64 GB M.2 SSD runs Docker and Python, with TPM 2.0, Smart OOB, OpenVPN, firewall and AD, Kerberos, LDAP, RADIUS and TACACS+. It is passively cooled in 1U with an internal supply, a rack kit, a DB-9 adapter and a 6 ft patch cable.
Key Features
- 48 RS-232 RJ-45 ports
- 10G SFP+ uplink
- x86, 8 GB, 64 GB SSD
- Docker, Python, TPM 2.0
- Passive cooling
- 1U, rack kit included
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: OM2248-10G
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: OpenVPN
Remote Management: SNMP, SSH
Authentication Method: Active Directory, Kerberos, LDAP, RADIUS, Secure Shell (SSH), TACACS+
Data Transfer Rate: 230.4 Kbps
Features: Authentication, Authorization and Accounting (AAA), Docker Support, Firewall protection, Management Information Base (MIB), Passive cooling, Password protection, Python runtime, Quad-core CPU, Smart Out-of-Band, Trusted Platform Module 2.0 (TPM 2.0)
Connectivity
Ports: 48
Interface Provided: 1 x 10 Gigabit Ethernet - SFP+, 1 x 1000Base-T - RJ-45, 1 x console - RJ-45, 48 x RS-232 - RJ-45
Power
Device Type: Internal power supply
Memory and Processor
Hard Drive Form Factor (metric): M.2
Processor Brand: AMD
Processor Type: GX-412TC
Processors Installed: 1
Clock Speed: 1.4 GHZ
RAM Installed: 8 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 16 megabyte
Total Processor Supported: 1
Hard Drive Capacity: 64 GB
Hard Drive Form Factor: M.2
Port Expansion Hard Drive Type: SSD
Drive Interface: Serial ATA-600
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90%
MTBF: 100,000 hour(s)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Installed Quantity: 1
Dimensions and Weight
Height: 1.8 inch
Width: 17.3 inch
Depth: 10.2 inch
Weight: 7.72 lbs
Included Items
Included Accessories: Rack mount kit
Cables: 1 x DB-9 to RJ-45 adapter, 1 x patch cable - 6 ft
