Product Information

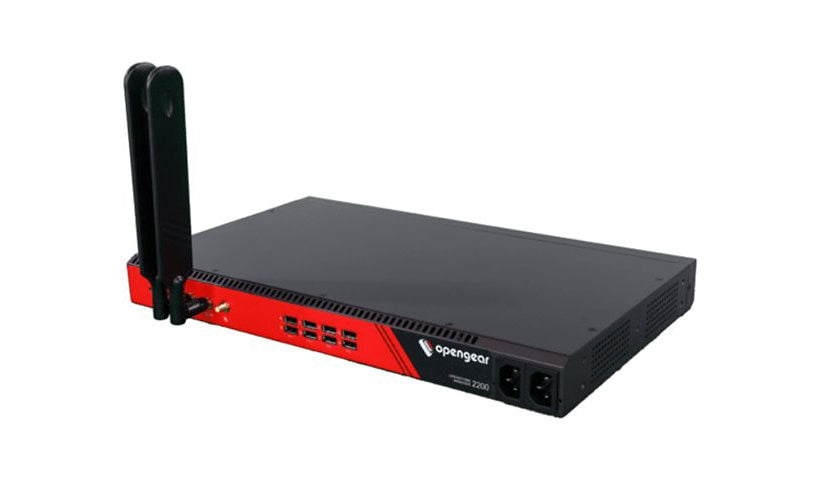

The Opengear OM2248-L-LSP is a 48 port OM2200 Operations Manager for data centers and dense sites, combining Smart OOB with automation on a separate secure management plane. It has forty-eight RS-232 ports at up to 230.4 Kbps, LTE cellular with two SIM slots and two antennas, and Lighthouse Service Portal. An AMD GX-412TC at 1.4 GHz with 8 GB DDR3 and a 64 GB M.2 SSD supports Docker, Python, Secure Boot, TPM 2.0, OpenVPN and firewall, with SSH and TACACS+. It fits 1U with an internal supply, a rack kit, a crossover cable and a network cable.
Key Features
- 48 RS-232 serial ports
- LTE with 2 SIM slots
- Lighthouse Service Portal
- x86, 8 GB, 64 GB SSD
- Secure Boot, TPM 2.0
- 1U rack mount
Product Information
Brand: Opengear
Manufacturer: OPENGEAR
Product Line: Opengear
Model: OM2248-L
Product Type: Console server
Packaged Quantity: 1
Color Category: Black, Red
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: OpenVPN
Remote Management: SSH
Authentication Method: Secure Shell (SSH), TACACS+
Data Transfer Rate: 230.4 Kbps
Cellular Data Connectivity Technology: LTE
Mobile Broadband Access: Yes
Antennas: 2
Antenna Form Factor: External detachable
Features: Docker Support, Firewall protection, Lighthouse Service Portal (LSP) enabled, Python runtime, Secure Boot, Trusted Platform Module 2.0 (TPM 2.0)
Connectivity
Ports: 48
Expansion Slots: 2 (total) / 2 (free) x SIM card
Power
Device Type: Internal power supply
Memory and Processor
Hard Drive Form Factor (metric): M.2
Processor Brand: AMD
Processor Type: GX-412TC
Processors Installed: 1
Clock Speed: 1.4 GHZ
RAM Installed: 8 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 16 megabyte
Total Processor Supported: 1
Hard Drive Capacity: 64 GB
Hard Drive Form Factor: M.2
Port Expansion Hard Drive Type: SSD
Drive Interface: Serial ATA-600
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90%
MTBF: 100,000 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Installed Quantity: 1
Dimensions and Weight
Height: 1.8 inch
Width: 17.3 inch
Depth: 10.2 inch
Weight: 7.72 lbs
Included Items
Included Accessories: Rack mount kit
Cables: 1 x crossover cable, 1 x network cable
