Product Information

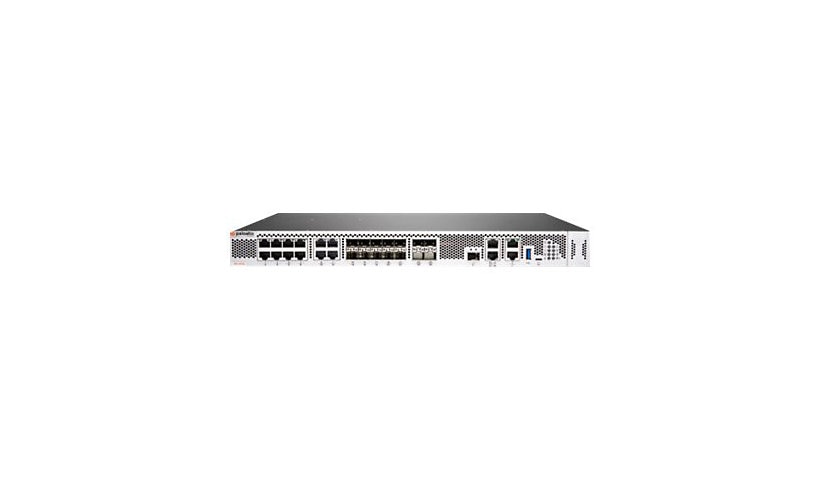

The Palo Alto Networks PA-3410 is a 1U PA-3400 series firewall, listed at 11.6 Gbps firewall (appmix) and 5.9 Gbps threat prevention, with up to 1.4 million sessions. It has 1/10G SFP/SFP+ ports with 25G support, a 10G SFP+ HA port, a 480 GB SSD and two hot plug power supplies.
Key Features
- 11.6 Gbps firewall (appmix)
- 5.9 Gbps threat prevention
- 1/10G SFP+ ports
- 10G SFP+ HA port
- 480 GB SSD
- 1U, dual hot plug PSU
Product Information
Brand: Palo Alto Networks
Manufacturer: Palo Alto
Product Line: Palo Alto Networks
Model: PA-3410
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 25 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet
Network Standard: IPSec, IPv4, PPPoE
Routing Protocol: BGP, Bidirectional Forwarding Detection (BFD), IGMP, IGMPv2, IGMPv3, OSPFv2, OSPFv3, PIM-SM, PIM-SSM, RIP, Static IP routing
Encryption: 128-bit AES, 192-bit AES, 256-bit AES, IKEv1, IKEv2, MD5, SHA-1, SHA-256, SHA-384, SHA-512, Triple DES
Capacity: Maximum number of sessions: 1400000, New sessions per second: 145000, Virtual systems (base): 1, Virtual systems (maximum): 11, VLAN tags per device: 4094, VLAN tags per interface: 4094
Network Device: Firewall throughput (appmix): 11.6 Gbps, Firewall throughput (HTTP): 14.5 Gbps, Threat prevention throughput (appmix): 5.9 Gbps, Threat prevention throughput (HTTP): 5.2 Gbps, VPN throughput (IPSec): 6.8 Gbps
Operating System Edition: PAN-OS
Features: 5G MEC (multi-access edge computing) Security, 5G Security, Firewall protection, GTP Security, Layer 7 Deep Packet Inspection (DPI), ML-Powered Next-Generation Firewall, Policy based forwarding, SCTP Security, SD-WAN support, VLAN support, Zero-touch provisioning (ZTP)
Connectivity
Interface Provided: 1 x 1000Base-T (management) - RJ-45, 1 x 10Gb Ethernet (HA) - SFP+, 1 x console - RJ-45, 1 x management (USB) - micro-USB, 10 x 1Gb Ethernet/10Gb Ethernet - SFP/SFP+, 12 x 1/2.5/5/10GBase-T - RJ-45, 2 x 1000Base-T (HA) - RJ-45, 4 x 25Gb Ethernet - SFP28
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Power Consumption Operational: 155 watt
Power Provided: 450 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Hard Drive Capacity: 480 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90%
MTBF: 22 Year
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.2 inch
Depth: 14.1 inch
Weight: 15.43 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.3ad (LACP)
Compliant Standards: CB, cTUVus, FCC Class A certified, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
