Product Information

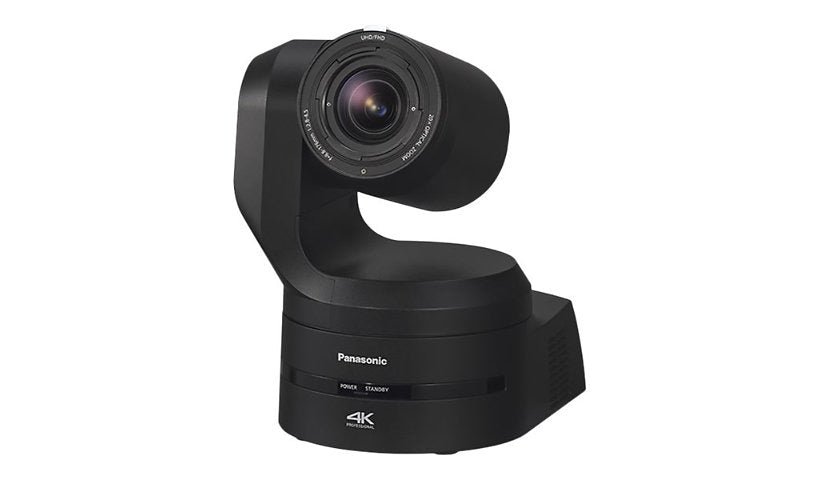

The Panasonic AW-UE160 (AW-UE160KPJ) is a black 4K PTZ camera for broadcast and live production, with 20x optical zoom, frame rates up to 120 fps, and outputs including 12G-SDI, 3G-SDI, HDMI and SFP+. It has XLR audio inputs, genlock, FreeD support and image stabilization, and runs on 12 V DC or PoE+. It is a broadcast/production camera, not a security camera.
Key Features
- 4K, up to 120 fps
- 20x optical zoom
- 12G-SDI, SFP+, HDMI
- XLR audio inputs
- FreeD support
- 12 V DC or PoE+
Product Information
Brand: Panasonic
Manufacturer: Panasonic Industrial
Product Line: Panasonic
Model: AW-UE160
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Operating System Required: Android, Apple iOS, Apple macOS 10.13, Apple macOS 10.14, Apple macOS 10.15, Google Chrome OS, Windows 10
Features: BT.2020 compatible, BT.709 compatible, Constant Bit Rate (CBR), Crop Zoom, Cropping function, FreeD protocol support, Gain Control, Gamma control, Image stabilizer, Multicast Streaming, Privacy mode, Tally light, Unicast Streaming, Variable Bit Rate (VBR), White balance
Connectivity
Network Interface: LAN
Protocols: ARP, DHCP, DNS, GARP, HTTP, HTTPS, ICMP, IPv4, IPv6, MDNS, MLD, NDI HX2, NTP, SNMP, TCP/IP, UDP/IP
Ports: 12G-SDI - BNC, 2 x 3G-SDI output - BNC, 2 x audio line in - 3 pin XLR, Fibre Channel - SFP+, G/L input - BNC, HDMI output, LAN/power - RJ-45, Serial RS-422 - RJ-45, USB 3.0 - 9 pin USB Type A
Host Interface: USB
Power
Low Voltage Power: DC 12 V / PoE Plus
Technical Information
Horizontal Resolution (TV Lines): 1600
Angular Field of View (D, Max, Degree): 82.8
Angular Field of View (H, Max, Degree): 75.1
Angular Field of View (V, Max, Degree): 46.7
Focus Modes: Automatic, Manual
Video Signals: 12G-SDI, 3G-SDI, HDMI
Angular Field of View (D, Min, Degree): 4.6
Max Focal Length: 176 millimetre
Optical Zoom: 20
Control Interface: RS-422A
Camera Type: Conference camera
Camera Mount Type: Ceiling mount, Surface mount
Recording Formats: JPEG
Digital Zoom: 32
Max Panning Speed (degree/sec): 180
Max Tilting Speed (degree/sec): 180
Tilt: -30 to +210
Panning Range (degree): -175 to +175
Angular Field of View (H, Min, Degree): 4
Angular Field of View (V, Min, Degree): 2.3
Min Focus Distance: 3.9 inch
Total Pixels: 9,620,000 pixels
Video Modes: 1080/100p, 1080/120p, 1080/23.98p, 1080/24p, 1080/25p, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 1080/60p, 2160/23.98p, 2160/24p, 2160/25p, 2160/29.97p, 2160/50p, 2160/59.94p, 2160/60p, 720/50p, 720/59.9p
Image Sensor Size: 1"
Image Sensor Type: MOS
Lens Aperture: F/2.8-4.5
Min Focal Length: 8.8 millimetre
Sensor Size (metric): 15.86 mm (1")
Night Vision: Yes
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 3840 x 2160, 640 x 360
Max Frame Rate: 120 frames per second
Shutter Speed (Max): 1/2000 second (time unit)
Shutter Speed (Min): 1/48 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 90% (non-condensing)
Physical Characteristics
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 9.4 inch
Width: 8.4 inch
Depth: 10.9 inch
Weight: 10.14 lbs
