Product Information

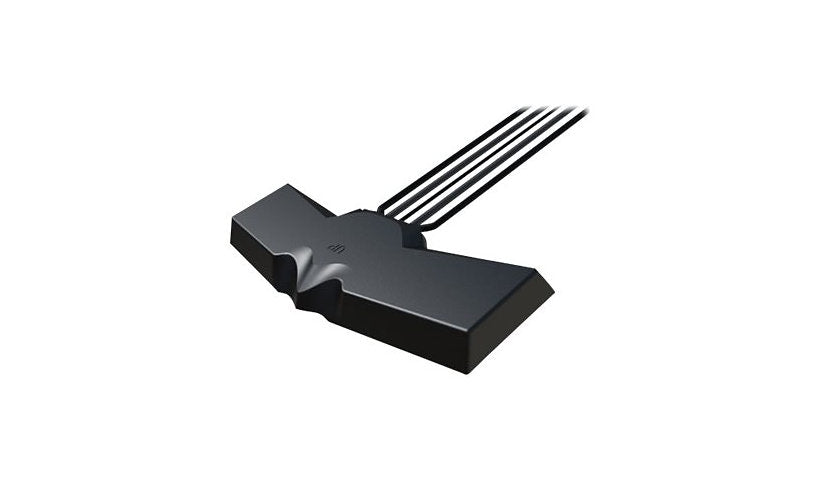

The Panorama BATGM-7-60-24-58 is a discreet internal all in one antenna from the BAT range with 2x2 MIMO 4G/5G across 617 to 960 MHz and 1427 to 6000 MHz including Band 71, dual band Wi-Fi up to 6E and active GPS/GNSS with a 26 dB amplifier and Band 13/14 filtering. It mounts on or under a vehicle dashboard, on glass or on any non conductive surface, and comes with low loss cables on SMA and RP-SMA connectors. It is black and made in China.
Key Features
- 2x2 MIMO 4G/5G antenna
- 617 to 6000 MHz, Band 71
- Dual band Wi-Fi to 6E
- Active GPS/GNSS, 26 dB
- Dash or glass mount
- SMA and RP-SMA, black
Product Information
Brand: Panorama Antennas
Manufacturer: Panorama Antennas Ltd
Product Line: BAT
Product Type: Antenna
Usage: Cellular Network, GPS
Color Category: Black
Color Family: Black
Country of Origin: China
Network and Communication
Max Antenna Range: 9.8 ft
Antenna Gain: 26 decibel
Directivity: Omni-directional
Connectivity
Connector Type: RP-SMA, SMA
Physical Characteristics
Form Factor: Dash Mount, Glass Mount
Dimensions and Weight
Height: 0.65 inch
Width: 3.03 inch
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
