Product Information

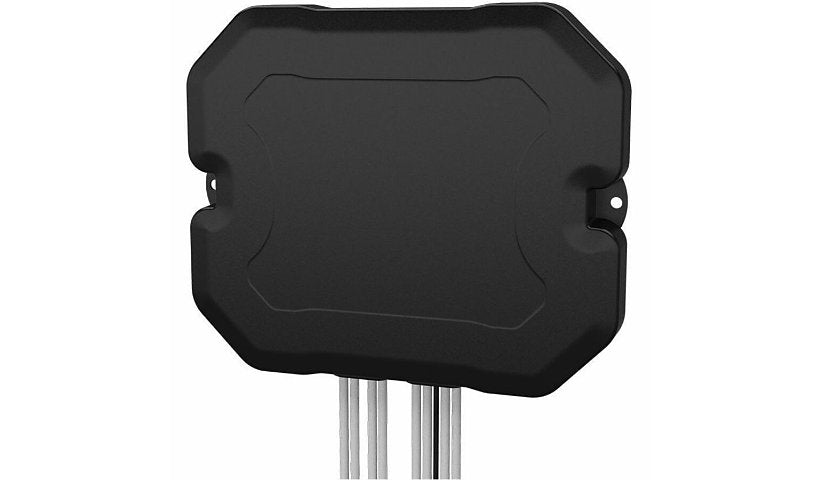

The Panorama BATM4-6-60 is a discreet 4x4 MIMO antenna for 4G and 5G (617 to 960 and 1427 to 6000 MHz) that adhesive or screw mounts to any non metal surface, such as on or under a dashboard. It has SMA connectors. The series also offers optional GPS and Wi-Fi 6E elements, so please confirm what this part includes.
Key Features
- 4x4 MIMO 4G / 5G
- 617 to 6000 MHz
- Covert, low profile
- Adhesive or screw mount
- SMA connectors
- Confirm GPS / Wi-Fi options
Product Information
Brand: Panorama Antennas
Manufacturer: Panorama Antennas Ltd
Series: BAT[X]M4-6-60-[X]
Product Type: Antenna
Usage: Cellular Network, GPS, Wireless Data Network
Network and Communication
Antenna Gain: 30 decibel
Directivity: Omni-directional
Connectivity
Connector Type: SMA
Technical Information
Voltage Standing Wave Ratio (VSWR): 2.5:1
Physical Characteristics
Form Factor: Adhesive Mount, Screw Mount
Dimensions and Weight
Height: 0.98 inch
Width: 9.13 inch
Depth: 7.72 inch
