Product Information

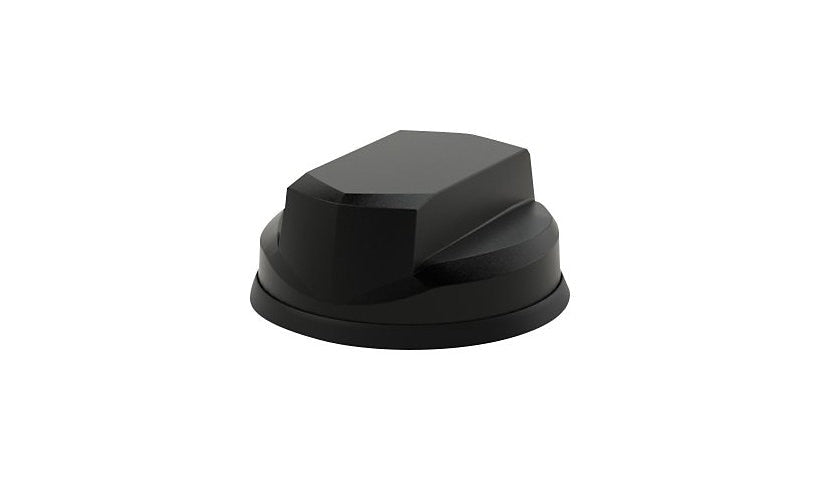

The Panorama LGMDMB-6-60-24-58 is the 5G Great White, a black ground plane independent dome antenna with 2x2 MIMO 4G/5G across 617 to 960 MHz and 1427 to 6000 MHz, dual band Wi-Fi and GPS/GNSS with a 26 dB amplifier, with up to 9 functions in the range. It panel mounts on conductive or non conductive surfaces and comes with flame retardant RG174 cables that meet EN45545-2 and UN ECE R118.03, a halogen free radome and SMA connectors. It is 7.09 inches across.
Key Features
- 2x2 MIMO 5G dome antenna
- 617 to 960, 1427 to 6000 MHz
- Wi-Fi and GPS, 26 dB
- Ground plane independent
- Panel mount, SMA
- Black, 7.09 in
Product Information
Brand: Panorama Antennas
Manufacturer: Panorama Antennas Ltd
Series: L[G]M[X]M[X]-6-60[-24-58]
Product Type: Antenna
Usage: Cellular Network, GPS, In-vehicle Router, Vehicle, Wireless Data Network
Color Category: Black
Color Family: Black
Network and Communication
Antenna Gain: 26 decibel
Antenna Type: Dome
Directivity: Omni-directional
Connectivity
Connector Type: SMA
Physical Characteristics
Form Factor: Panel Mount
Dimensions and Weight
Item Diameter: 7.09 inch
Height: 2.95 inch
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
