Product Information

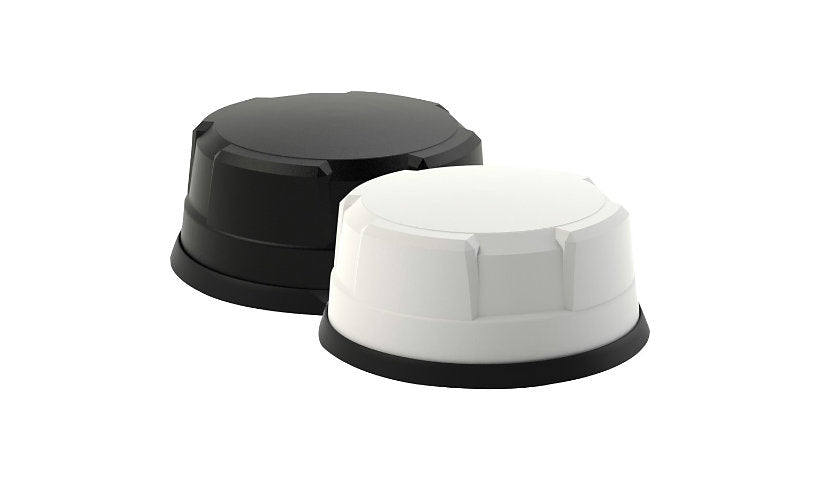

The Panorama LG-IN2444-W-LC is a compact low profile antenna with 4x4 MIMO 4G/5G across 617 to 960 MHz and 1710 to 6000 MHz plus active GPS/GNSS with a 26 dB LNA. It panel mounts on conductive or non conductive surfaces and is supplied with flame retardant RG174 cables to UN ECE 118.01 and EN45545-2 with SMA connectors. The halogen free radome is rated IK10 against vandalism and IP69K against dust and water, and the antenna is 7.09 inches across.
Key Features
- 4x4 MIMO 4G/5G antenna
- 617 to 960, 1710 to 6000 MHz
- Active GPS/GNSS, 26 dB LNA
- Panel mount, SMA
- IK10 and IP69K rated
- 7.09 in diameter
Product Information
Brand: Panorama Antennas
Manufacturer: Panorama Antennas Ltd
Model: LG-IN2444
Product Type: Antenna
Usage: Cellular Network, GLONASS, GPS, Wireless Data Network
Color Category: White
Network and Communication
Antenna Gain: 26 decibel
Connectivity
Connector Type: SMA
Physical Characteristics
Form Factor: Panel Mount
Dimensions and Weight
Item Diameter: 7.09 inch
Height: 3.15 inch
