Product Information

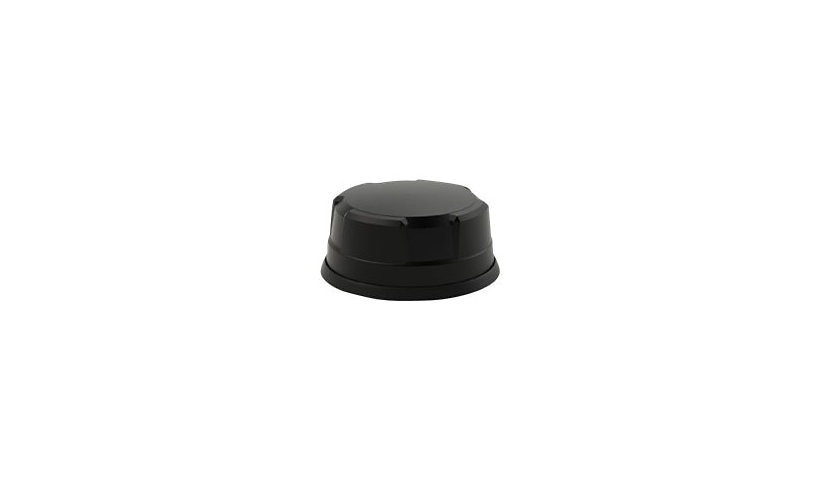

The Panorama LG-IN2445 is a low profile dome antenna that combines 4x4 MIMO 4G/5G cellular (617 to 960 MHz and 1710 to 6000 MHz), 2x2 MIMO dual band Wi-Fi and GPS/GNSS in one housing. It panel mounts, uses integrated flame retardant RG174 cables with SMA connectors, and has an IK10 rated halogen free radome. The listing gives 26 dB gain, which applies to the GPS element, with VSWR under 2.0:1.
Key Features
- 4x4 MIMO 4G/5G cellular
- 2x2 MIMO Wi-Fi
- GPS/GNSS element
- Low profile dome, panel
- RG174 cables, SMA
- IK10 vandal resistant
Product Information
Brand: Panorama Antennas
Manufacturer: Panorama Antennas Ltd
Model: LG-IN2445
Product Type: Antenna
Usage: Cellular Network, GLONASS, GPS, Wireless Data Network
Color Category: Jet Black
Color Family: Black
Network and Communication
Antenna Gain: 26 decibel
Antenna Type: Dome
Connectivity
Connector Type: SMA
Technical Information
Voltage Standing Wave Ratio (VSWR): <2.0:1 ± 4MHz
Physical Characteristics
Form Factor: Panel
Dimensions and Weight
Item Diameter: 7.09 inch
Height: 3.15 inch
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
