Product Information

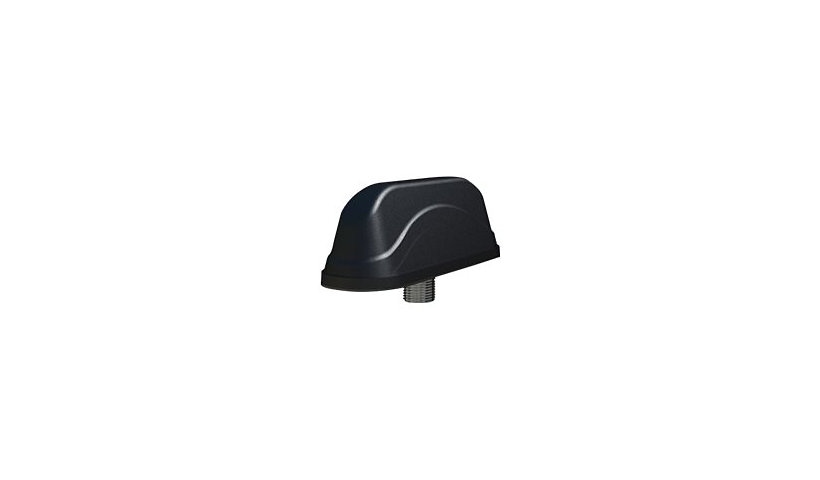

The Panorama LGAM-7-27-24-58 is a compact low profile multi function antenna for M2M uses such as vending machines and payment terminals. It combines 2x2 MIMO 2G/3G/4G/5G from 698 to 3800 MHz, 2x2 MIMO dual band 2.4/5 GHz Wi-Fi and an active GPS/GLONASS/Galileo/BeiDou antenna with a 26 dB LNA. It panel mounts, keeps working well on non metallic surfaces, is omni-directional with VSWR under 2:1, IP66 weatherproof, black and uses SMA connectors.
Key Features
- 2x2 MIMO 5G/LTE antenna
- 2x2 dual band Wi-Fi
- Active GNSS, 26 dB LNA
- Panel mount, SMA
- IP66 weatherproof
- For kiosks and terminals
Product Information
Brand: Panorama Antennas
Manufacturer: Panorama Antennas Ltd
Series: L[G]AM-7-27-[X]24-58
Product Type: Antenna
Usage: Cellular Network, GPS, Payment Terminal, Vending Machine
Color Category: Black
Color Family: Black
Network and Communication
Antenna Gain: 26 decibel
Directivity: Omni-directional
Connectivity
Connector Type: SMA
Technical Information
Voltage Standing Wave Ratio (VSWR): <2:1
Physical Characteristics
Form Factor: Panel Mount
Dimensions and Weight
Height: 1.97 inch
Width: 1.73 inch
Depth: 5.91 inch
