Product Information

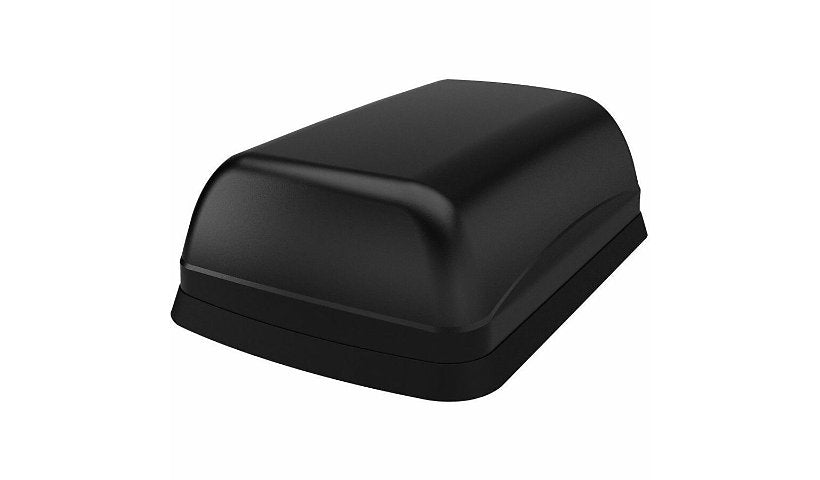

The Panorama LGAM4-7-42 is part of the LxAxM4-7-42 low profile IoT antenna family, with four LTE and 5G NR elements spanning 698 to 960 MHz and 1427 to 4200 MHz plus GPS/GNSS in this G version. Its flame retardant, impact resistant curved housing resists tampering and is IK10 and IP69K rated. It is omni-directional with VSWR of 2.5:1 and SMA connectors. The spec lists 12 dB gain while the quick specs give 30 dB or 26 dB LNA options, so please confirm.
Key Features
- 4x4 MIMO 4G/5G antenna
- 698 to 960, 1427 to 4200 MHz
- GPS/GNSS included
- IK10 and IP69K
- SMA connectors
- For IoT devices
Product Information
Brand: Panorama Antennas
Manufacturer: Panorama Antennas Ltd
Series: L[X]A[X]M4-7-42[-X]
Product Type: Antenna
Usage: Cellular Network, GPS, Wireless Data Network
Network and Communication
Antenna Gain: 12 decibel
Directivity: Omni-directional
Connectivity
Connector Type: SMA
Technical Information
Voltage Standing Wave Ratio (VSWR): 2.5:1
Dimensions and Weight
Height: 2.24 inch
Width: 4.65 inch
Depth: 6.91 inch
