Product Information

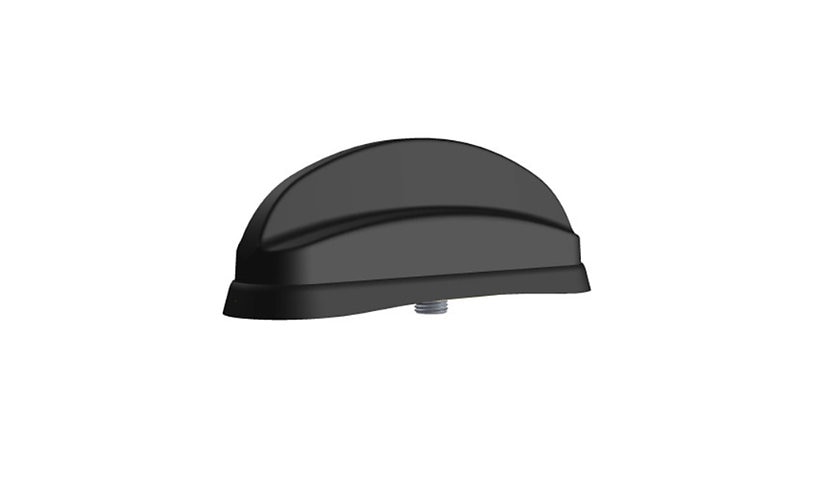

The Panorama LPAM-6-60-1 is a black low profile 2x2 MIMO 4G/5G antenna across 617 to 960 MHz and 1427 to 6000 MHz for vending machines, kiosks, displays and payment terminals. It fits a mast, panel or wall, works best on metal panels, is IP69K rated with VSWR under 2:1 and SMA connectors. Other versions add Wi-Fi 6E or GPS, which is where the listed 26 dB LNA applies.
Key Features
- 2x2 MIMO 4G/5G antenna
- 617 to 960, 1427 to 6000 MHz
- Mast, panel or wall
- IP69K rated
- SMA connectors
- For kiosks and IoT
Product Information
Brand: Panorama Antennas
Manufacturer: Panorama Antennas Ltd
Series: LP[G]AM[F]-6-60
Product Type: Antenna
Usage: Cellular Network, Display Screen, Kiosk, Vending Machine
Color Category: Black
Color Family: Black
Network and Communication
Antenna Gain: 26 decibel
Directivity: Omni-directional
Connectivity
Connector Type: SMA
Technical Information
Voltage Standing Wave Ratio (VSWR): <2:1
Physical Characteristics
Form Factor: Mast/Panel/Wall
Dimensions and Weight
Height: 3.54 inch
Width: 2.48 inch
Depth: 9.57 inch
