Product Information

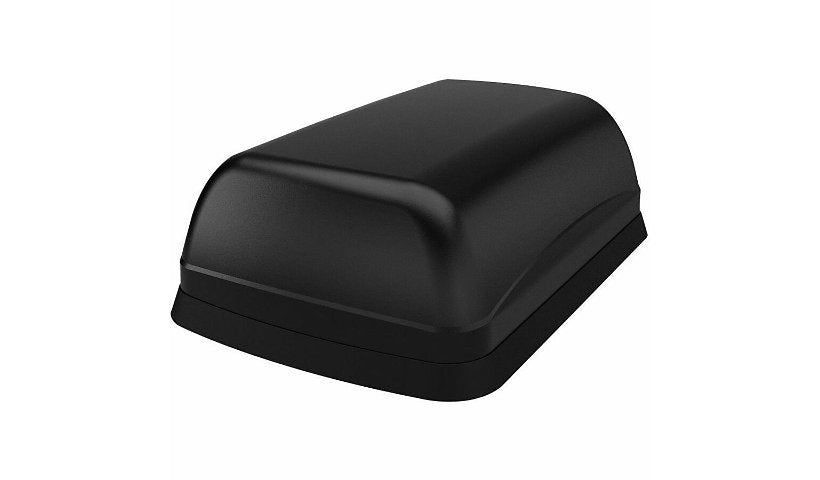

The Panorama LPAM4-7-42 is a low profile 4x4 MIMO antenna for IoT, with four 4G LTE and 5G NR elements covering 698 to 960 and 1427 to 4200 MHz, in a housing rated IK10 and IP69K. It has SMA connectors. The series also offers optional Wi-Fi 6E and GPS elements, so please confirm which elements this part includes.
Key Features
- 4x4 MIMO 5G / LTE
- 698-960, 1427-4200 MHz
- IK10, IP69K
- Low profile IoT design
- SMA connectors
- Confirm Wi-Fi / GPS options
Product Information
Brand: Panorama Antennas
Manufacturer: Panorama Antennas Ltd
Series: L[X]A[X]M4-7-42[-X]
Product Type: Antenna
Usage: Cellular Network, GPS, Wireless Data Network
Network and Communication
Antenna Gain: 12 decibel
Directivity: Omni-directional
Connectivity
Connector Type: SMA
Technical Information
Voltage Standing Wave Ratio (VSWR): 2.5:1
Dimensions and Weight
Height: 2.24 inch
Width: 4.65 inch
Depth: 6.91 inch
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
