Product Information

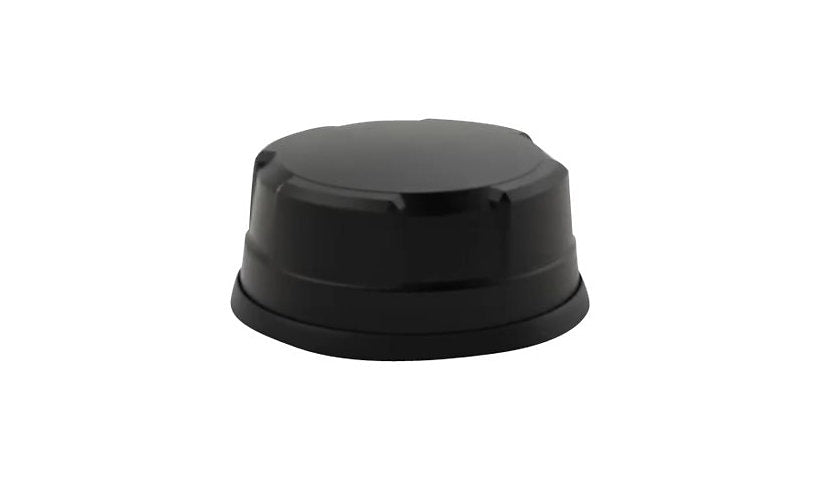

The Panorama LGMDM4B-6-60-24-58 is a black low profile MAKO dome antenna with 4x4 MIMO 4G/5G across 617 to 960 MHz and 1710 to 6000 MHz, dual band Wi-Fi and active GPS/GNSS with a 26 dB LNA. The range offers up to 6x6 MIMO Wi-Fi at 2.4/5.0 GHz or 4x4 Wi-Fi 6E. It panel mounts on conductive or non conductive panels, is 7.09 inches across and comes with flame retardant RG174 cables, with FME and SMA connectors listed.
Key Features
- 4x4 MIMO 5G dome antenna
- 617 to 960, 1710 to 6000 MHz
- Dual band Wi-Fi
- Active GPS/GNSS, 26 dB LNA
- Panel mount, RG174 cables
- Black, 7.09 in diameter
Product Information
Brand: Panorama Antennas
Manufacturer: Panorama Antennas Ltd
Product Line: MAKO
Series: LGM
Product Type: Antenna
Usage: Cellular Network, GPS, Wireless Data Network
Color Category: Black
Color Family: Black
Network and Communication
Antenna Gain: 26 decibel
Antenna Type: Dome
Connectivity
Connector Type: FME, SMA
Power
Power Source: DC Power
Physical Characteristics
Form Factor: Panel Mount
Dimensions and Weight
Item Diameter: 7.09 inch
Height: 3.15 inch
