Product Information

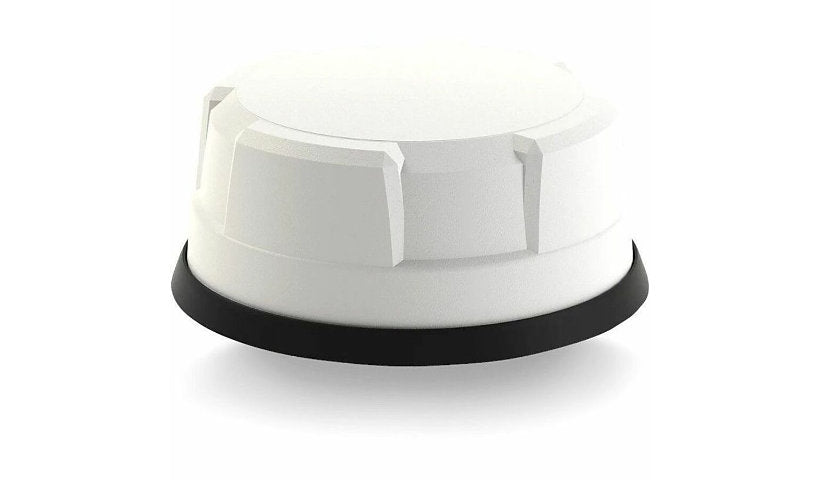

The Panorama LGMM4-6-60 is a white MAKO 5G Dome antenna, part of a range of 4x4 MIMO antennas for 617 to 960 MHz and 1710 to 6000 MHz built for LTE Cat 18/20 routers. The range can carry up to 11 elements, including optional Wi-Fi at 2.4 and 5.0/7.2 GHz and an active GPS/GNSS antenna with a 26 dB amplifier. It fits by magnet, panel or surface mount, is 7.09 inches across with VSWR under 2:1, and uses flame retardant cables to UN ECE R118 with cable flags, listed with FME and SMA connectors.
Key Features
- 4x4 MIMO 5G dome antenna
- 617 to 960, 1710 to 6000 MHz
- GPS/GNSS, 26 dB amplifier
- Magnetic, panel or surface mount
- UN ECE R118 cables
- White, 7.09 in diameter
Product Information
Brand: Panorama Antennas
Manufacturer: Panorama Antennas Ltd
Product Line: MAKO
Series: L[G]M[H]M4[B]-6-60[-24-58]
Product Type: Antenna
Usage: Cellular Network, GPS, Vehicle
Included Quantity: 1
Color Category: White
Color Family: White
Network and Communication
Antenna Gain: 26 decibel
Antenna Type: Dome
Directivity: Omni-directional
Connectivity
Connector Type: FME, SMA
Technical Information
Voltage Standing Wave Ratio (VSWR): <2.0:1
Physical Characteristics
Form Factor: Magnetic Mount, Panel Mount, Surface Mount
Dimensions and Weight
Item Diameter: 7.09 inch
Height: 3.15 inch
Certifications and Listing
Environmentally Friendly: Yes
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
