Product Information

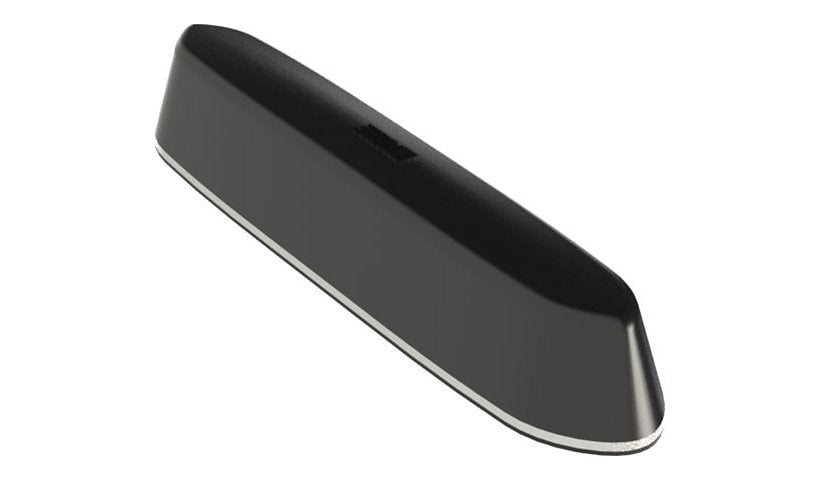

The Parsec Australian Shepherd (PTA4AS4L06B) is a black low profile 4x4 MIMO 5G antenna made to sit beside light bars on police and other vehicles. It is thin enough to fit between roof ridges and shaped to avoid wind noise. It covers 617 to 894 MHz, 1710 to 2700 MHz, 3400 to 4000 MHz and 5150 to 5925 MHz with gain from 3.5 dBi up to 7 dBi. It is rugged, IP67 and power wash safe, takes up to 10 W, is 13.5 inches long and comes with 6 ft cables on SMA and RP-SMA male connectors.
Key Features
- 4x4 MIMO 5G antenna
- 617 MHz to 5.9 GHz
- Up to 7 dBi gain
- Low profile, fits by light bars
- IP67, power wash safe
- 6 ft cables, SMA and RP-SMA
Product Information
Brand: Parsec
Manufacturer: : Parsec Technologies
Product Line: Parsec Australian Shepherd PTA Series
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 3.5 dbi (for 617 - 663 MHz), 4 dbi (for 798 - 894 MHz), 5.5 dbi (for 663 - 798 MHz), 6 dBi (for 5150 - 5925 MHz), 6.5 dBi (for 1710 - 2700 MHz), 7 dBi (for 3400 - 4000 MHz)
Antenna Placement: Car
Antenna Compatibility: 4G, 5G
Frequency Range: 1710 - 2700 MHz, 3400 - 4000 MHz, 5150 - 5925 MHz, 617 - 663 MHz, 663 - 798 MHz, 798 - 894 MHz
Signaling Type: Cellular
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: Antenna - RP-SMA (male), Antenna - SMA (male)
Technical Information
Antenna Form Type: Radome
Antenna Features: 4x4 MiMo, IP67, Linear polarization, MIMO technology, Right-hand circular polarization (RHCP), Rugged
Max Power: 10 watt
Dimensions and Weight
Antenna Length: 13.5 inch
Height: 2.1 inch
Width: 2.4 inch
Length: 1 ft
Included Items
Cables: Antenna cable - 6 ft
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
