Product Information

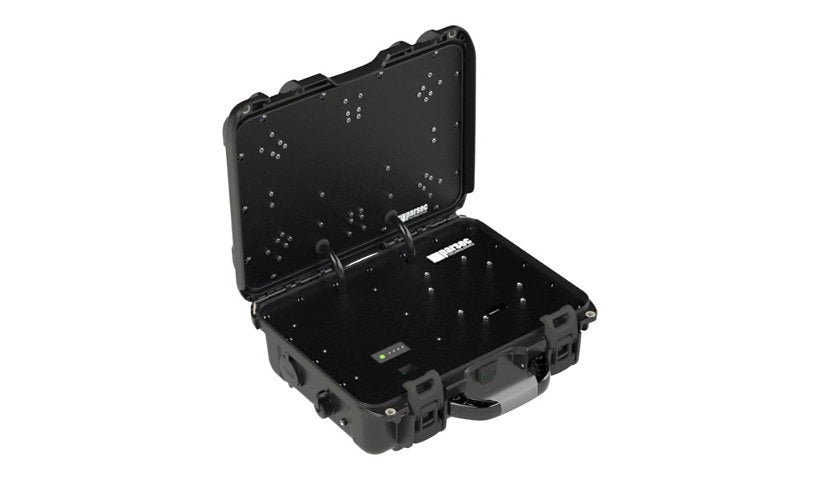

The Parsec Bernese Mountain Dog is a rugged IP54 case with built in antennas for a router: 4x4 MIMO 5G and LTE, two Wi-Fi elements, Bluetooth and GPS. It includes a router mount plate, battery tray, fan, top cover, four RJ-45 connectors and a USB-C connector, with 1.5 ft antenna leads.
Key Features
- Rugged antenna case
- 4x4 5G / LTE, 2 Wi-Fi, BT, GPS
- Router mount plate, battery tray
- Built-in fan
- IP54, shock resistant
- RJ-45 and USB-C pass-throughs
Product Information
Brand: Parsec
Manufacturer: : Parsec Technologies
Product Line: Parsec Bernese Mountain Dog Series
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 2 dBi (for 617 - 698 MHz), 5 dBi (for 698 - 894 MHz), 6 dBi (for 1575.42 MHz), 6 dBi (for 2200 - 2700 MHz), 7 dBi (for 1710 - 2200 MHz), 7 dBi (for 2400 - 2483.5 MHz), 7.5 dBi (for 3300 - 4000 MHz), 8.5 dBi (for 4900 MHz - 5900 MHz), 8.5 dbi (for 5150 - 5925 MHz)
Antenna Compatibility: 5G, Bluetooth, GPS, LTE, Wi-Fi
Frequency Range: 1575.42 MHz, 1710 - 2200 MHz, 2200 - 2700 MHz, 2400 - 2483.5 MHz, 3300 - 4000 MHz, 4900 - 5900 MHz, 5150 - 5925 MHz, 617 - 698 MHz, 698 - 894 MHz
Signaling Type: Bluetooth, Cellular, Navigation, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 2 x Wi-Fi antenna - RP-SMA, 4 x antenna - SMA (male), Bluetooth antenna - RP-SMA (male), GPS antenna - SMA (male)
Power
Power Device Type: Battery
Technical Information
Impedance: 50 ohm
Antenna Form Type: Case
Antenna Features: 4x4 MiMo LTE, IP54, Linear polarization, Right-hand circular polarization (RHCP), Rugged, Shock-resistant
Max Power: 5 watt
Dimensions and Weight
Height: 6.8 inch
Width: 16.7 inch
Depth: 13.4 inch
Included Items
Accessories Included: 4 RJ-45 connectors, battery tray, fan, router mount plate, top cover, USB-C connector
Cables: Antenna cable - 1.5 ft
Warranty
Service Activation: No
