Product Information

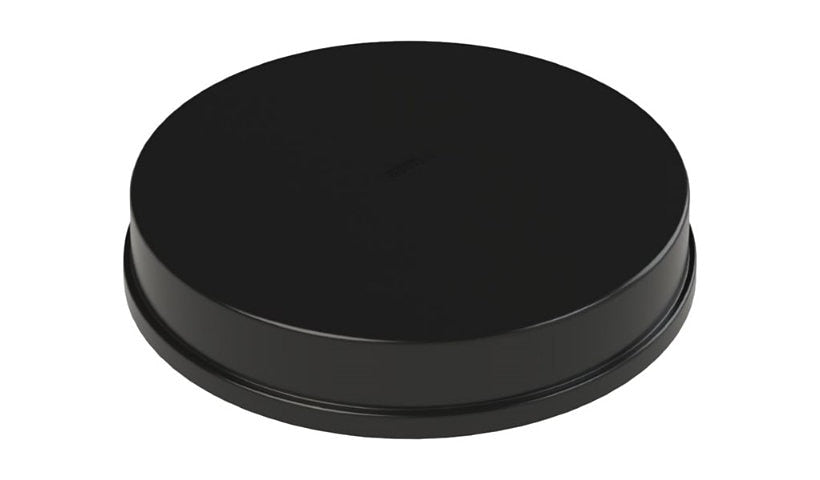

The Parsec Great Pyrenees PRO (PRO12GP8L2WBG15B) is a black 12-in-1 magnetic mount radome antenna with two separate sets of 4x4 MIMO 5G cellular, so two carriers can run side by side on two radios without interfering. One set is tuned for T-Mobile Band 71. It also covers Wi-Fi, Bluetooth and GPS at 1575.42 MHz. Frequencies run from 617 MHz to 5.925 GHz with gain from 2.5 dBi at the low band up to 9 dBi at 4.9 to 5.9 GHz. It is rugged, IP67, linearly polarized, takes up to 10 W and has 15 ft cables with SMA and RP-SMA male connectors.
Key Features
- Dual 4x4 MIMO 5G antenna
- Two carriers in one unit
- Band 71 tuned set
- Wi-Fi, Bluetooth, GPS
- Up to 9 dBi, 617 MHz to 5.9 GHz
- IP67, magnetic, 15 ft cables
Product Information
Brand: Parsec
Manufacturer: : Parsec Technologies
Product Line: Parsec Great Pyrenees PRO Series
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 2.5 dBi (for 617 - 663 MHz), 3 dBi (for 746 - 798 MHz), 3 dBi (for 798 - 894 MHz), 5 dBi (for 663 - 746 MHz), 6 dBi (for 1710 - 2000 MHz), 6 dBi (for 1710 - 2200 MHz), 7 dBi (for 2000 - 2700 MHz), 7 dBi (for 2200 - 2700 MHz), 7 dBi (for 2400 - 2483.5 MHz), 8 dBi (for 3300 - 4000 MHz), 8 dbi (for 5150 - 5925 MHz), 9 dBi (for 4900 MHz - 5900 MHz)
Antenna Placement: Magnetic mountable
Antenna Compatibility: 4G, 5G, Bluetooth, GPS, LTE, Wi-Fi
Frequency Range: 1575.42 MHz, 1710 - 2200 MHz, 2200 - 2700 MHz, 2400 - 2483.5 MHz, 3300 - 4000 MHz, 4900 - 5900 MHz, 5150 - 5925 MHz, 617 - 663 MHz, 663 - 746 MHz, 746 - 798 MHz, 798 - 894 MHz
Signaling Type: Bluetooth, Cellular, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: Antenna - RP-SMA (male), Antenna - SMA (male)
Technical Information
Antenna Form Type: Radome
Antenna Features: 4x4 MiMo LTE, IP67, Linear polarization, MIMO technology, Rugged, Waterproof
Max Power: 10 watt
Dimensions and Weight
Height: 2.2 inch
Width: 10.7 inch
Depth: 10.7 inch
Included Items
Cables: Antenna cable - 15 ft
Warranty
Service Activation: No
