Product Information

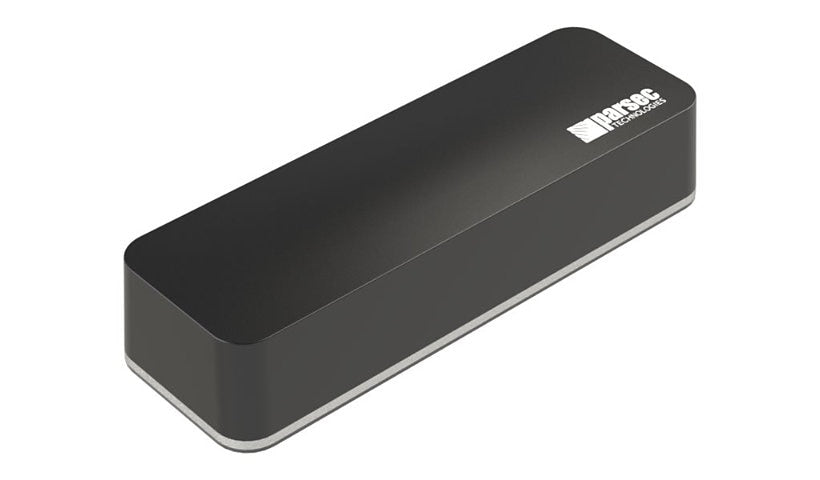

The Parsec Irish Setter PRO is a rugged, low profile 5-in-1 radome antenna for kiosks, with 4x4 MIMO 5G and LTE from 617 to 5925 MHz plus a GNSS element. It is IP67 waterproof, short bolt mounts and has SMA male connectors on 3 ft cables.
Key Features
- 4x4 MIMO 5G / LTE + GNSS
- 617 to 5925 MHz
- IP67, rugged, low profile
- SMA male, 3 ft cables
- Short bolt mount
- Kiosk installs
Product Information
Brand: Parsec
Manufacturer: : Parsec Technologies
Product Line: Parsec Irish Setter PRO Series
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Placement: Kiosk
Antenna Compatibility: 4G, 5G, GNSS, LTE
Frequency Range: 1575.42 MHz, 1710 - 2700 MHz, 3300 - 3800 MHz, 5150 - 5925 MHz, 617 - 894 MHz
Signaling Type: Cellular, Navigation
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: Antenna - SMA (male)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Radome
Antenna Features: 4x4 MiMo, IP67, Low profile, Rugged, Short bolt mount, Waterproof
Max Power: 10 watt
Dimensions and Weight
Antenna Length: 11 inch
Height: 2.2 inch
Width: 3.7 inch
Length: 1 ft
Included Items
Cables: Antenna cable - 3 ft
Warranty
Service Activation: No
