Product Information

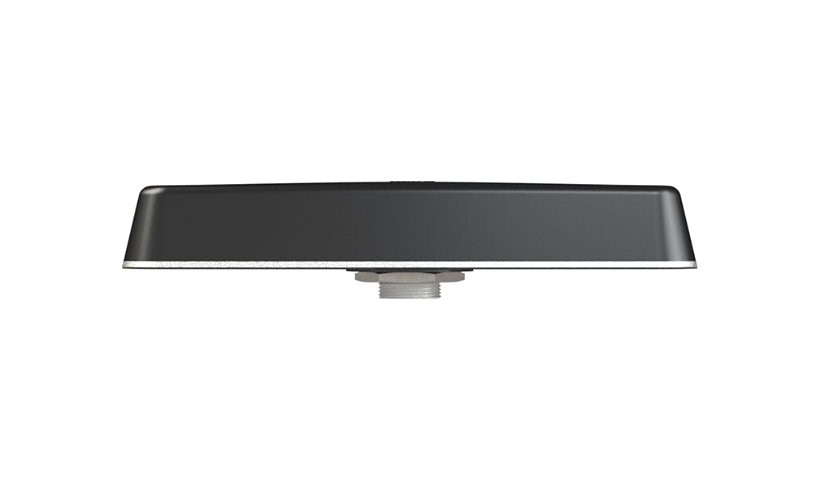

The Parsec Australian Shepherd is a high-performance 5G antenna that combines 4x4 MIMO cellular, 4x4 MIMO Wi-Fi and GPS in one rugged radome, covering roughly 600 MHz to 6 GHz for mobile, fixed wireless and IoT use. Its low silhouette suits vehicles with low-profile LED light bars, it is IP67 rated, and Wi-Fi gain reaches 10 dBi.
Key Features
- 9-in-1 5G antenna
- 4x4 MIMO cellular, 4x4 MIMO Wi-Fi and GPS
- 15 ft attached cable
- IP67, waterproof
- Low-profile vehicle mount
Product Information
Brand: Parsec
Manufacturer: : Parsec Technologies
Product Line: Parsec Australian Shepherd Series
Model: PTA9AS4L4WG15B
Technical Information
Impedance: 50 ohm
Dimensions and Weight
Cable Length: 1 ft
Width: 2.4 inch
Height: 2 inch
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Type: Antenna - RP-SMA, Antenna - SMA (male)
Antenna Compatibility: 5G, 802.11ac, GPS, LTE, Wi-Fi
Antenna Features: 4x4 MiMo, IP67, Linear polarization, MIMO technology, Right-hand circular polarization (RHCP), Rugged, Waterproof
Antenna Form Type: Radome
Antenna Gain: 10 dBi (for 2400 - 2483.5 MHz), 10 dBi (for 4900 - 5900 MHz), 3.5 dbi (for 617 - 663 MHz), 4 dbi (for 798 - 894 MHz), 5.5 dbi (for 663 - 798 MHz), 6 dBi (for 1575.42 MHz), 6 dBi (for 5150 - 5925 MHz), 6.5 dBi (for 1710 - 2700 MHz), 7 dBi (for 3400 - 4000 MHz)
Antenna Length: 13.1 inch
Antenna Placement: Car
Antenna Type: Antenna
Frequency Range: 1575.42 MHz, 1710 - 2700 MHz, 2400 - 2483.5 MHz, 3400 - 4000 MHz, 4900 - 5900 MHz, 5150 - 5925 MHz, 600 - 6000 MHz, 617 - 663 MHz, 617 - 894 MHz, 663 - 798 MHz, 798 - 894 MHz
Max Power: 5 watt
Signaling Type: Cellular, Navigation, Wi-Fi
Cables: Antenna cable - 15 ft
