Product Information

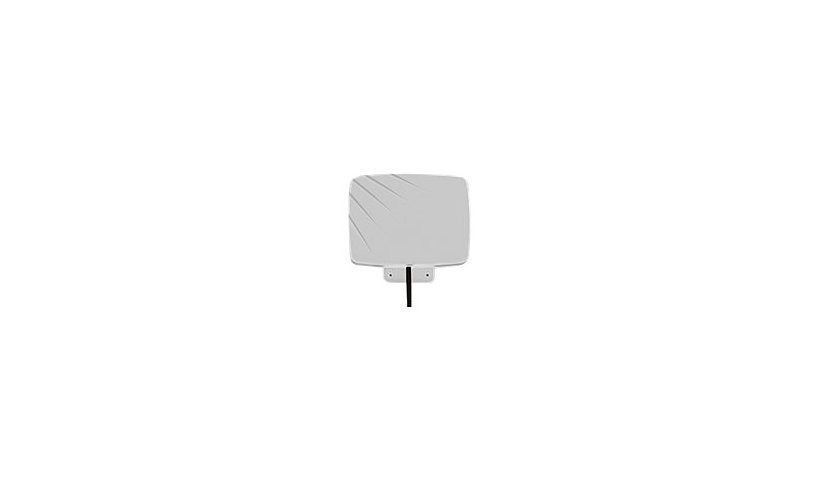

The Parsec Labrador PRO is a compact 2x2 MIMO LTE wall-mount antenna for in-building coverage, outdoor LTE or LTE failover. It is IP54 rated, mounts indoors or outdoors (pole mount optional), and gives 3 to 5.5 dBi gain from 698 MHz to 2.7 GHz. It has an SMA male connector.
Key Features
- 2x2 MIMO LTE antenna
- 15 ft attached cable
- Wall or pole mount
- IP54 rated
- White
Product Information
Brand: Parsec
Manufacturer: : Parsec Technologies
Product Line: Parsec Labrador PRO Series
Model: PTAWM2L15W
Dimensions and Weight
Width: 8.1 inch
Height: 6.3 inch
Depth: 1.1 inch
Color: White
Included Item
Packaged Quantity: 1
Additional Information
Type: 1 x antenna - SMA (male)
Active Antenna: Active
Antenna Compatibility: LTE
Antenna Features: IP54, Linear polarization, MIMO technology
Antenna Form Type: Plate
Antenna Gain: 3 dBi (for 698 - 894 MHz), 4 dBi (for 2.3 - 2.7 GHz), 5.5 dBi (for 1695 - 2200 MHz)
Antenna Placement: Indoor, Outdoor, Wall-mountable
Antenna Type: Antenna
Frequency Range: 1695 - 2200 MHz, 2.3 - 2.7 GHz, 698 - 894 MHz
Max Power: 5 watt
Signaling Type: Cellular
Cables: 1 x antenna cable - 15 ft
Not sure which antenna fits your router or modem? Send us your device model, the bands you need and the connector types, and the DatorPro team will help you confirm compatibility before you order.
