Product Information

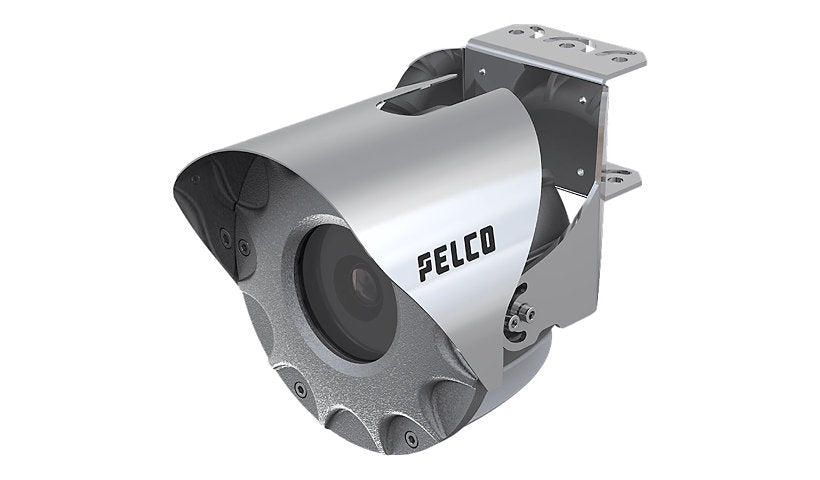

The Pelco ExSite Enhanced 2 EXC2602-62 is an explosion proof compact camera with a 1/1.8 inch sensor recording 3200 x 1800 at 30 fps through a 4.9 to 8 mm lens. It has loitering, direction and sabotage detection and 64 privacy zones, works from -40 to 65 C and runs on 24 V DC, 24 V AC or PoE+.
Key Features
- 6 MP, 3200 x 1800
- Explosion proof
- 4.9 to 8 mm lens
- Loitering detection
- -40 to 65 C
- 24 V DC, 24 V AC or PoE+
Product Information
Brand: Pelco
Manufacturer: Pelco
Product Line: Pelco ExSite Enhanced 2
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Features: 16:9 aspect ratio, 3D digital noise reduction (DNR), 64 privacy zones, Appearing / disappearing detection, Backlight Compensation (BLC), Camera Sabotage Detection, Direction Violated, IR-cut filter, Loitering detection, Manual white balance, Object Detection, Object enter area detection, Object leave area detection, Object stops in area detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Smart analytics, Stainless steel 316L housing, Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTCP, RTP, RTSP, SNMP 2c, SNMP 3, SOAP, SRTP, TCP, UDP, Zeroconf
Ports: LAN/power - RJ-45
Technical Information
Angular Field of View (H, Max, Degree): 92
Angular Field of View (V, Max, Degree): 51
Auto Iris Control: P-Iris
Max Focal Length: 8 millimetre
Optical Zoom: 1.6
Camera Type: Network surveillance camera
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 52
Angular Field of View (V, Min, Degree): 29
Camera Iris: Auto iris
Min Focus Distance: 1.6 ft
Minimum Illumination: 0.028 lux - B&W - F1.8, 0.055 lux - color - F1.8
Total Pixels: 6,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/1.8
Min Focal Length: 4.9 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Night Vision: Yes
Digital Video Capture Resolution: 3200 x 1800
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/8196 second (time unit)
Shutter Speed (Min): 1/7 second (time unit)
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 3200 x 1800
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Physical Characteristics
Protection: Explosion-proof
Form Factor: Compact
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 7 inch
Width: 7 inch
Depth: 10 inch
Weight: 14.33 lbs
Certifications and Listing
Compliant Standards: ATEX Directive, BIS, CSA, cULus, EN 50130-4, EN 50130-5, EN 55032, EN 60068-2-52, EN 60068-2-6, EN 60079-1, EN 60079-31:2009, EN 61000-6-3, Ex db IIC T5 Gb, Ex db IIC T6 Gb, Ex tb IIIC T85°C Db, FCC Part 15 B Class A, ICES-003 Class A, IEC 60079-0, IEC 60079-1, IEC 60079-31, IECEx, INMETRO, IP66, IP67, IP68, IP69, KC, RCM, RoHS, UKCA, UL, UL 50E, UL 60079-0, UL 60079-1, UL 60079-31, UL/CSA 62368-1, UL/cUL Class 1 Division 2 Group A/B/C/D T6, UL/cUL Class II Division 2 Group E/F/G T85°C
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
