Product Information

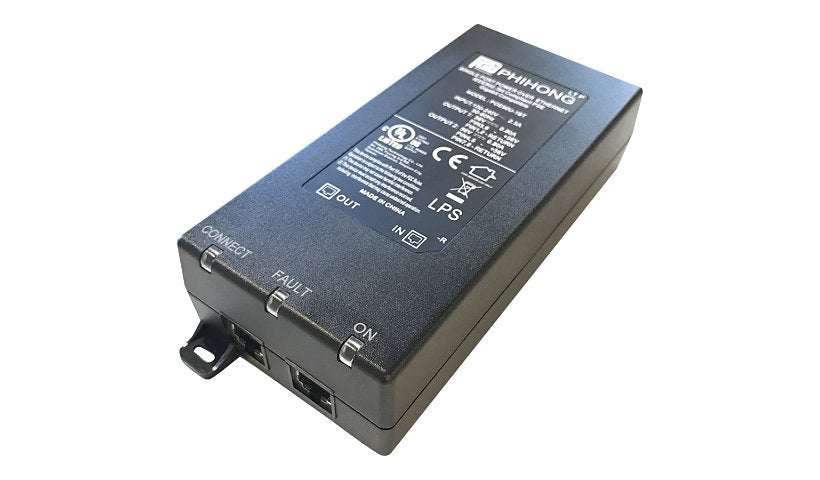

The Pelco POE90U1BT is a 90 W single port Power over Ethernet injector built for high data rate, high power cameras, with IEC 60320 C14 power input, 47 to 63 Hz, and overcurrent and overvoltage protection. Listed for the Pelco Spectra Pro 2 P2230L-FW1. It is a power device, not a camera.
Key Features
- 90 W PoE injector
- Single port
- IEC C14 input
- 47 to 63 Hz
- Over current protection
- For Spectra Pro 2
Product Information
Brand: Pelco
Manufacturer: Pelco
Product Line: Pelco
Model: POE90U1BT
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Compatibility Specs: Pelco Spectra Pro Series 2 P2230L-FW1
Packaged Quantity: 1
Color Category: Black
Connectivity
Power Over Ethernet (PoE): PoE
Power
Frequency: 47 - 63 hertz
Power Device Features: Overcurrent protection, Overvoltage protection
Input Connector Type: Power IEC 60320 C14
Power Provided: 90 watt
Form Factor (Power Device): External
Technical Information
Touchscreen: No
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Dimensions and Weight
Height: 1.7 inch
Width: 3.1 inch
Depth: 6.5 inch
Certifications and Listing
Compliant Standards #2: IEEE 802.3bt
Compliant Standards: cUL, EN 55032 Class B, EN55022 Class B, FCC Part 15 Class B, UL
Compliant Standards: IEEE 802.3bt
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
